20A Male Female Connectors Electrical Screw Type Wire 4 Pin Lighting Adapter

20A Male Female Connectors Electrical Screw Type Wire 4 Pin Lighting Adapter

  • 20A Male Female Connectors Electrical Screw Type Wire 4 Pin Lighting Adapter
20A Male Female Connectors Electrical Screw Type Wire 4 Pin Lighting Adapter
Product Details:
Place of Origin: Shenzhen China
Brand Name: Jnicon
Certification: UL , CE , CQC
Model Number: M12
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time: 3 ~ 5 days
Payment Terms: T/T,Paypal,L/C,Western Union, D/A, D/P, MoneyGram
Supply Ability: 1000 / day
Contact Now
Detailed Product Description
Product Name: M12 4Pin Female Waterproof Wire Connectors Application: Lighting / Lamp / Landscape Light
Gender: Female Molded With Cable Connector Contact Of Pin: 4Pole Connector
Contact Material: Gold Plating Connector Type: Screw Type
High Light:

male and female electrical plugs

,

male and female cable connectors

,

20A Male Female Connectors

20A Waterproof Male Female Connector Screw Type Wire 4 Pin Lighting Adapter



Characterization of  Product



M12 4pin waterproof male female connector is widly used for outdoor lighting , like tunnel light , washing light , garden light , street light etc . In a word , you can apply the M12 waterproof wire connector in all of the lighting equipment , but the max current should be no more than 20 A , and the operating voltage is 300v  .



All the contact can pass power / signal  , or you can treat 4pin as 2+2pin , 2pin just for power , 2pin just for signal . Contact material make by gold plated , can pass the power and signal stablly .



How to buy this connector from us ?



You should do something confirm the information  as below : , you should confirm some details

  • Step 1   confirm the current & voltage , all the contact transport the power or both power and data
  • Step 2   confirm the pin of contact , there are 4pin showed , we  also have 2pin , 3pin , 5pin, 6pin etc .
  • Step 3   confirm the cable specification and cable OD
  • Step 4   confirm the material of cable and length of cable
  • Step 5   maybe there are other questions , please feel free to contact me . I will reply you at first time when working .





Basic Information
1.  Material
1A Contact Plating gold plating
2B Contact Brass
3C Shell , insulating parts / Housing High-performance engineering plastics
2. Environmental
2A Flammability UL 94V-0
2B Operation temperature range -30℃~+80℃
3C Protection level IP68/IP67
3.Contact Way
3A Connecting mode Screw Type / Push Lock
3B Method of connecting wire Solder / Weld





More Detials : Electrical Function & Mechanical



Electrical Function  & Mechanical



1  Electrical function part

  • Contact Resistance : 3mΩ max.
  • Insulation Resistance : 10MΩ min.
  • Withstand Voltage : 2000V AC There shall be no breakdown.
  • Operating Rating :20A 300V



2  Mechanical  part

  • Cable OD : 6.0mm~11.0mm
  • Wise size : max 1.5mm2 / 16AWG
  • Life test : Mating & Unmating 500 cycles

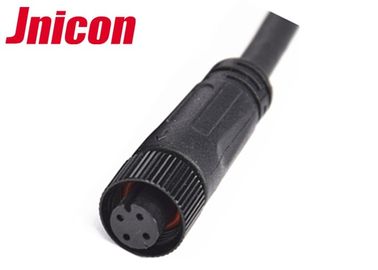

Picture - M12 4Pin Female Waterproof Wire Connectors



20A Male Female Connectors Electrical Screw Type Wire 4 Pin Lighting Adapter 0





M12 4Pin Male Waterproof Wire Connectors



20A Male Female Connectors Electrical Screw Type Wire 4 Pin Lighting Adapter 1



Application and Other Pin / Pole of M12 Waterproof  Male Female Connector



20A Male Female Connectors Electrical Screw Type Wire 4 Pin Lighting Adapter 2

Packing and Delivering



  1. Packaging Details: 500pcs to a skin packing to a carton Customized packing is welcome , MOQ of printing customized box is 3000 pcs each model .
  2. Delivery Details: sample about 3 working days, products in 7 days after payment.
  3. Weight <100 KG , we usually transport the good by internationl express .
  4. If you have shipping agent please tell me , then we can send it to him / her .
