Push Locking Waterproof Cable Connector , M25 50A PPA Pin Circular Connector

Push Locking Waterproof Cable Connector , M25 50A PPA Pin Circular Connector

  • Push Locking Waterproof Cable Connector , M25 50A PPA Pin Circular Connector
Push Locking Waterproof Cable Connector , M25 50A PPA Pin Circular Connector
Product Details:
Place of Origin: China
Brand Name: Jnicon
Certification: CE,TUV,UL,RoHS
Model Number: M25
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: High Quality export carton
Delivery Time: 3-6 working days
Payment Terms: T/T,Paypal,L/C,Western Union
Supply Ability: 10000/days
Contact Now
Detailed Product Description
Protection Level: IP67 Assembly Wire: Soldering Or Screw Fitting
Pin: 2pin Male Female Connector Current Rating(A): 50A
Connection Way: Push Locking Gender: Male Plug Female Plug
Material: PPA Operating Voltage: 500V
High Light:

industrial circular connector

,

circular plastic connectors

Jnicon 3Pin Cable Connector Waterproof Circular Connectors M25 50A



Description:



  • TUV,UL,CUL,CE approval
  • Any quantity is welcome
  • Panel mount connectors: for PCB, for screw fitting or soldering
  • 2pin wire to board waterproof connector
  • circular outdoor power cable connectors
  • waterproof cable connector ip67
  • 2pin DC power plug socket
  • industrial Electrical Plug socket



M25 waterproof Circular connector is the perfect solution to make your own waterproof connection cables easily. Thanks to its screw based terminal, soldering is not required and installation just takes a few minutes.



Operation Parameters
Voltage Rating 600VAC max
Current Rating 50A max
Min Wire Size OD 6.5mm ~ 10mm
Max Wire Size OD 10.5mm ~ 18mm
Max.Cable Cross Section Area 0.5mm2 ~ 6.0mm2
Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone


Once assembled, the M25 Outdoor Waterproof Circular Conector is easy to plug and play while keeping the elements and water out of splices and junctions. To disconnect, just unscrew the main body and pull apart the two ends.The M25 Waterproof conector has multiple waterproofing levels, consisting of o-rings, waterproof sealant, and flexible end seals designed to tighten and close awhen screwed together.

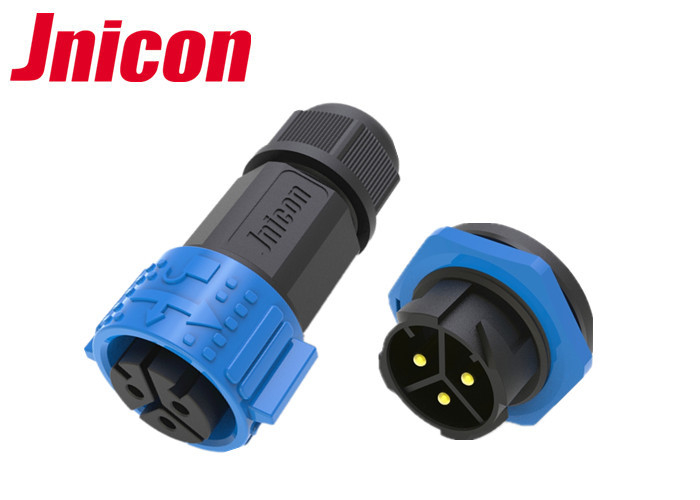

Push Locking Waterproof Cable Connector , M25 50A PPA Pin Circular Connector 0



This M25 circular power connector has a waterproof rating of IP67. To assemble the M25 Outdoor Waterproof Connector,only a Philips Screwdriver is required to attach the two wires inside each main body. Once each side is connected, the wiring is fully protected from the elements.If soldering version needed, its also avialble.



Details and Pin Arrangement

Push Locking Waterproof Cable Connector , M25 50A PPA Pin Circular Connector 1
