PA66 IP67 Waterproof Industrial Circular Connectors M19 300VAC

PA66 IP67 Waterproof Industrial Circular Connectors M19 300VAC

  • PA66 IP67 Waterproof Industrial Circular Connectors M19 300VAC
PA66 IP67 Waterproof Industrial Circular Connectors M19 300VAC
Product Details:
Place of Origin: China
Brand Name: Jnicon
Certification: CE,TUV,UL,RoHS
Model Number: M19
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time: 3-5 working days
Payment Terms: T/T,Paypal,L/C,Western Union
Supply Ability: 10000/days
Contact Now
Detailed Product Description
Rated Current: 20A/300V Product Name: Power Signal Waterproof Connector
Connection Type: Push Locking IP Level: IP67
High Light:

IP67 Waterproof Industrial Circular Connectors

,

PA66 Waterproof Industrial Circular Connectors

,

300VAC Power Signal Waterproof Connector

Power Signal Waterproof Industrial Circular Connectors M19



Description:



  1. Power signal waterproof connector
  2. Cable assembly supported
  3. Create waterproof connections easily
  4. Great for any outdoor configuration.
  5. wire to board version available
  6. Fully Waterproof Design
  7. IP67 Rating

Application industries:



Stage equipment The smart grid LED lighting
Medical equipment Battery charging Automation
Solar energy Ship equipment Agriculture
Electric power equipment Vehicles Ebike/motorcycle
Communications Pool lights Transportation



Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone



Operation Parameters
Voltage Rating 300VAC max
Current Rating 20A max
Min Wire Size OD 3.0mm ~ 6.0mm
Max Wire Size OD 6.5mm ~ 10.0mm
Max.Cable Cross Section Area 0.3mm2 ~ 1.5mm2



FAQ

1. Q: Are you a factory or trading company?
A: We are a factory. Located in Jnicon Industrial Park, Bao'an District,Shenzhen,China

2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.

3. Q: How can I get samples?

A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.

4. Q: How many materials you can provide?
A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.

5. Q: How does your factory do regarding quality control?
A: Quality is priority. Jnicon people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001,ISO14001.

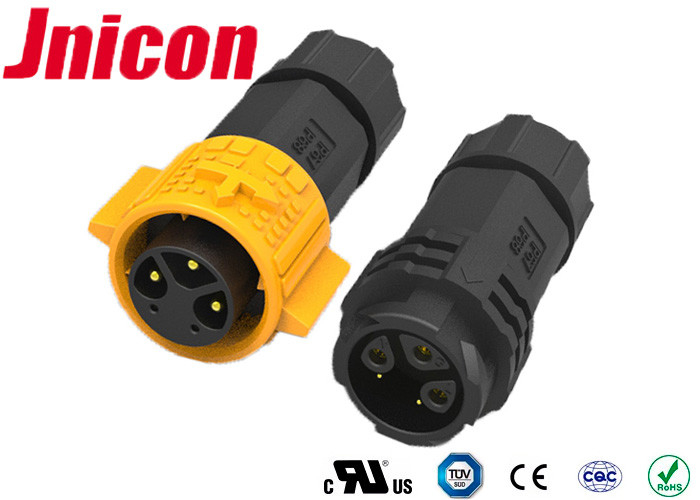

PA66 IP67 Waterproof Industrial Circular Connectors M19 300VAC 0

PA66 IP67 Waterproof Industrial Circular Connectors M19 300VAC 1
