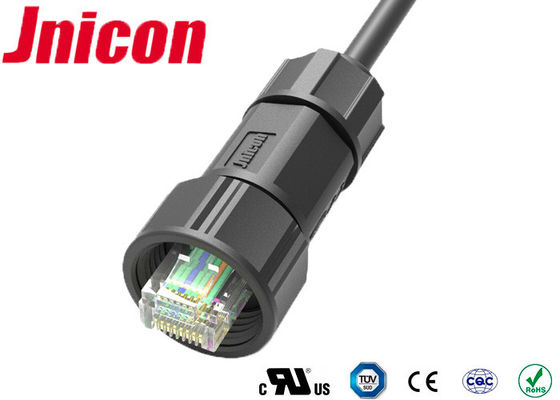

M19 Screw Locking PA66 Nylon Cat5e RJ45 Waterproof Connector

M19 Screw Locking PA66 Nylon Cat5e RJ45 Waterproof Connector

  • M19 Screw Locking PA66 Nylon Cat5e RJ45 Waterproof Connector
  • M19 Screw Locking PA66 Nylon Cat5e RJ45 Waterproof Connector
  • M19 Screw Locking PA66 Nylon Cat5e RJ45 Waterproof Connector
  • M19 Screw Locking PA66 Nylon Cat5e RJ45 Waterproof Connector
M19 Screw Locking PA66 Nylon Cat5e RJ45 Waterproof Connector
Product Details:
Place of Origin: China
Brand Name: Jnicon
Certification: UL/TUV/CQC/CE
Model Number: Ethercon RJ45 Waterproof Connector
Payment & Shipping Terms:
Minimum Order Quantity: 1 pair
Price: Negotiable
Packaging Details: 1.Plastic bag; 2.Carton;3.As per customer's requirements
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T,Paypal,Western Union, L/C, D/A, D/P, T/T
Supply Ability: 10000pcs/day
Contact Now
Detailed Product Description
Signal Transmission Speed: Cat5e/cat 6 Material: PA66 Nylon
Certificate: UL/TUV/CE/ROHS Name: RJ45 Waterproof Connector
Connecting Mode: Plug Unplug Contact Pin: Copper Alloy(gold-plated)
High Light:

Cat5e RJ45 Waterproof Connector

,

PA66 Nylon RJ45 Waterproof Connector

,

M19 Screw Locking RJ45 Connector

M19 Screw Locking Ethercon RJ45 Waterproof Connector



 Description of CCTV Waterproof Connectors For signal



Main Characteristic:



1. Compliance with D level or CAT 5e standard of EIA568B and ISO/IEC11801,RJ45 connectors compatible CAT5e,data transfer rate reach 10GBIT/S

2. Multi-style connecting modes:straight dual etherne port, 90 degree, PCB type and pin header type available

3. Applicable for harsh environments.

4. Cable jacket with solid diecasted shell and unique dual-clip-clip wire saddle.

5. Sheath of cable applicable for common RJ45 plugs.

6. Waterproof and non-waterproof design,protection level IP65/IP68 if waterproof and dustproof.

7. Electroplated shell against wind and rain.

8. Shielding system with high frequency noise immunity and electromagnetic interference protection.



Application

  • LED Display
  • Lighting outdoor
  • Mechanical Automation
  • Electric vehicle charging
  • Communication control box



Technical Parameters
Connecting mode Quick push pull Locking
Protection level IP65
Cable specification 0.15mm2~0.2mm2 /26~24AWG
Diameter range Φ5.5mm ~Φ7mm
Current rating(A) 5A
Contact resistance <30mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Prevent the combustion level UL94-V0
Materials
Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated)
Spring Stainless steel
Sealing Silica gel

FAQ


1. Q: What if I need the products have some differences on specification from yours?
A: Any requirement from customers will be considered since we stick customer service to the centre.The products you looking for can be customized by our professional R&D team.What's more,it's honored for us to offer you samples. By the way,samples will be free of charge while you bear the freight.

2. Q: How to contact with you?
A: Please give us email,we have worked for this industry more than 10 years,So we can catch your problem,and solve it in a short time.if you have any question please feel free to let us know.

3. Q: Can I visit your factory?
A: Yes,It will be better for us face to face to talk about the project.And I am sure you will be confident in us after you visit our factory.

4. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
