Push Locking IP67 Waterproof Connector M23 8 Pin Panel Mount For E Scooter

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Jnicon
Certification:	TUV,UL,CE,CQC
Model Number:	M23

Payment & Shipping Terms:

Minimum Order Quantity:	1 pair
Price:	Negotiable
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~5 working days
Payment Terms:	T/T, Western Union, , D/P, D/A, L/C, MoneyGram
Supply Ability:	10000 sets / Day

Contact Now

Detailed Product Description

Current Rating:	50A	IP Rated:	IP67
Connecting Model:	Push Lock	Contact Pin:	8Pin
Voltage Rated:	300V	Color:	Blue/Black/yellow
High Light:	E Scooter IP67 Waterproof Connector , M23 IP67 Waterproof Connector , Push locking waterproof panel mount connector

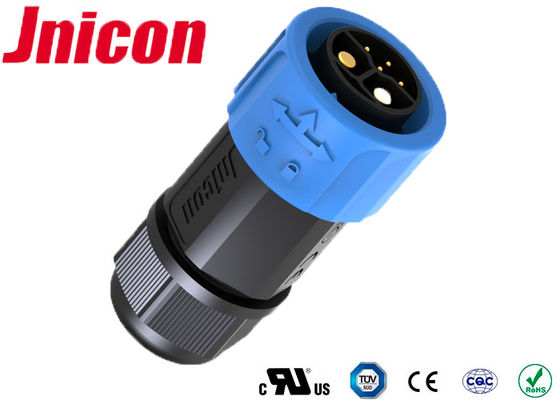

M23 Male Charging Plug And Female Receptacle IP67 Waterproof Connector For E-Scooter

Quick Details of Jnicon M23 Waterproof Connector

Push locking waterproof connector IP67 is the main feacture of Jnicon M23 model. Its take only a few seconds to connect the male female connector, thanks to its advanced structure . it is widely used in many application. If your products is E-Scooter, this model connector would help you a perfect and most advanced connection.

Application of 8 Pin Panel Mount connector

Lithium-Ion Systems
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Main characteristics Of Waterproof Power Connector

Sealed against dust and fluid (IP67)
power connector waterproof
Vibration resistance,impact resistance,stretching resistance
socket with cover
Cable assembly support
Customized cable size and length

Features Of M23 Waterproof Connector

2 power supply 50A max., 5IN signal 1pin grounding
IP67 rating
Voltage rating: 300V
Cable Range: 3~11mm
UL, TUV, CB, CCC, CE, RoHS approved
Mating cycle: 5000 times

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	500VAC max
Min Wire Size OD	3.0mm ~ 6.5mm
Max Wire Size OD	6.5mm ~ 10mm
Max.Cable Cross Section Area	0.3mm2 ~ 2.5mm2

FAQ

1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.

2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and shipping way

3. Q: How to contact with you?
A: Please give us email,we have worked for this industry more than 10 years,So we can catch your problem,and solve it in a short time.if you have any question please feel free to let us know.
