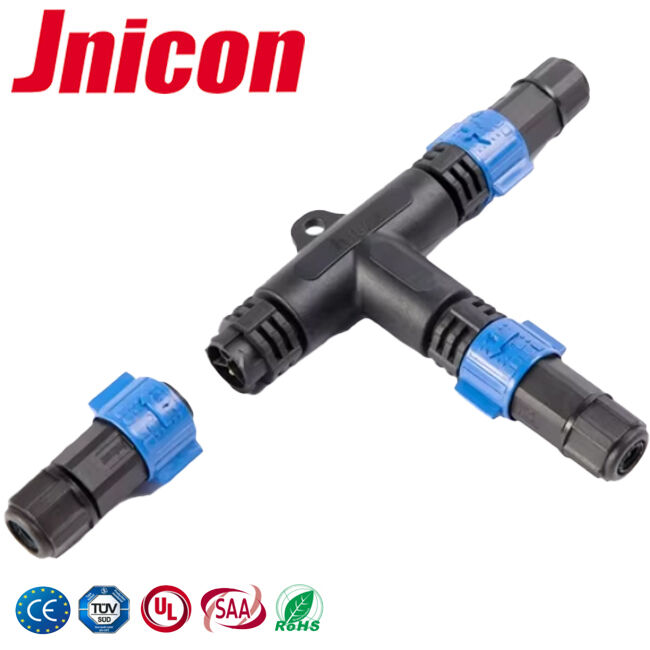

Name: M19 IP67 Solar Connectors T Type 500V High Voltage Waterproof Connector Push Lock
Brand: Shenzhen Jnicon Technology Co., Ltd.
SKU: M19
Price: 2.20 USD
Availability: InStock

Home Products IP67 Waterproof Connector

M19 IP67 Solar Connectors T Type 500V High Voltage Waterproof Connector Push Lock

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Jnicon
Certification:	UL,TUV,CE,ROHS,CQC
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	100 (10 Pairs of samples)
Price:	Negotiable
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3-5 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union,

Contact Now

Detailed Product Description

Pole No.:	M19 2 Poles/3 Poles/4 Poles Available	Weterproof Level:	IP67
Connector Type:	T Shaped Waterproof Connector	Warranty:	5 Years
Rated Current:	20Amps	Flame-resistant Rating:	UL94-V0
Highlight:	M19 IP67 solar connectors , T type waterproof connector , high voltage push lock connector

M19 IP67 Solar Connectors T Type 500V High Voltage Waterproof Connector Push Lock

Product Description

IP67 waterproof level
T shaped waterproof connector
Flexiable connection to different cable length and spec
Push locking connection method
20A current rating

Technical Specification

Connector type :	T shaped waterproof connector
Connector color:	Black, blue, yellow
Waterproof level:	IP67/IP68
Cable specification:	20AWG-12AWG
Cable diameter range:	4.5mm-11mm
Contact diameter*No.	Φ1.0-Φ2.4
Rated current (A):	20A
Operating voltage (AC.V.rms):	500V
Connection method:	Push pull locking connector

T shaped waterproof connectors coudl be a flexiable option to different applications or fields, such as audio,vidio,stage lighting,landscape light etc. let's different cable length to connect together,easy to install and disassemble it.

Material

Shell and insulated parts:	High performance engineering plastics
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel

Better quality connectors could be used for a long time and no need to replace always, UL approved material and connectors to ensure your applications long working time and more stable.

Popular Applications

Stage equipment	The smart grid	LED lighting
Medical equipment	Battery charger	Automatic
Solar energy equipment	Ship equipment	Agriculture
Electric power equipment	Stage lighting equipment	Ebike/motorcycle
