Overmolded Ip67 Rated Connectors Outdoor Electric Power Connection For LED Display

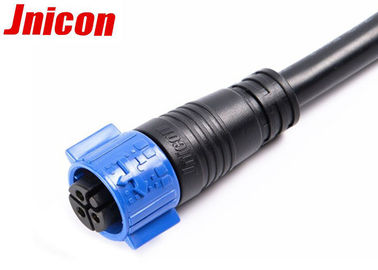

Large Image : Overmolded Ip67 Rated Connectors Outdoor Electric Power Connection For LED Display

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	Jnicon
Certification:	UL,TUV,CE,ROHS,CQC
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	100 (10 Pairs of samples)
Price:	Negotiable
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3-5 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000/days

Contact Now

Detailed Product Description

Product Name:	M19 Overmolded Waterproof Connector	Application:	For Outdoor Electric Power Connection
Waterproof Level:	IP67	Rated Current:	20A/300V
Cable Range:	16-12AWG(11mm Max)	Warranty:	5 Years
Highlight:	ip67 electrical connectors , ip67 circular connectors , Overmolded Ip67 Rated Connectors

3 Pin Overmolded IP67 Waterproof Connector With Cable For Led Display

Features

3 pin overmolded waterproof connector could be well used for outdoor led display, lighting, cable length could be customized.
Protection level: IP67
Connection method: soldering(welding)
Assembly: cable to cable / wire to wire
Certification: UL,TUV,RoHS,CQC,CE
Function : outdoor electric power extension
Color: black, yellow, blue.

M19 3 pin overmolded waterproof connector could be easy push and pull, simple to install and repair.

OEM and ODM accepted.

Technical specification

Specifications:
Current rating:	5A-20A
Core number:	3 core
Connector type :	overmolded cable connector
Connector color:	Black, blue, yellow
Waterproof level:	IP67
Cable specification:	20AWG-12AWG
Cable diameter range:	4.5mm-11mm
Connecting mode:	Push pull locking waterproof connector
Operating voltage (AC.V.rms):	500V
Withstand voltage (AC.V)1min:	1500V

Application industries:
Stage equipment	The smart grid	LED lighting
Medical equipment	Battery charging	Automation
Solar energy equipment	Ship equipment	Agriculture
Landscape lights	Marine	Fishing system

Connector's benefits :

1. Great suitable for industrial power connection, LED fixtures, Telecommunication, Marin, grating, external wiring, CCTV, factory automation control, other places need waterproof power extension use.

2. Easy connection, convenient install, DIY tools, and no need to pinch-off cable electrical plastic sets, just unscrew the ends of waterproof connector, connect the wire correctly: N for Neutral wire, G for Ground wire, L for live wire.

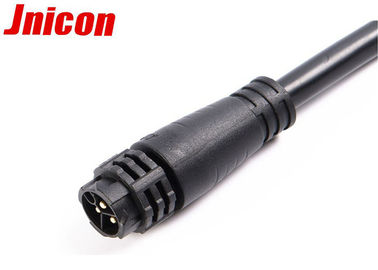

Overmolded Ip67 Rated Connectors Outdoor Electric Power Connection For LED Display 0
