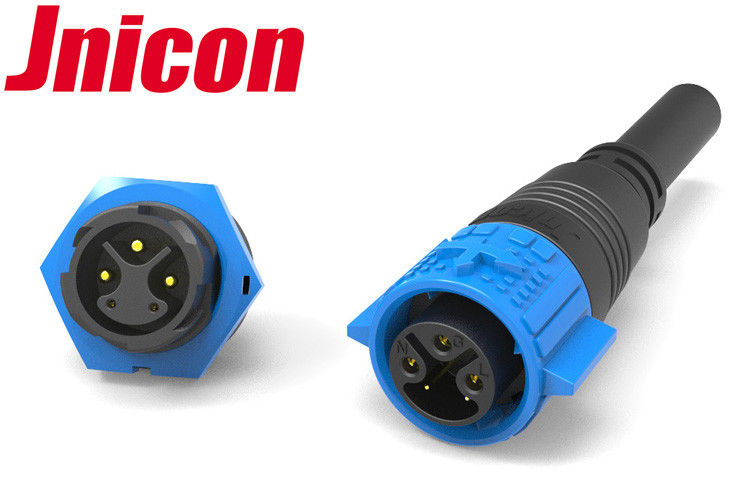

Dust Proof IP67 M19 Connector 3 Power 2 Signal Good Stretching Resistance

Dust Proof IP67 M19 Connector 3 Power 2 Signal Good Stretching Resistance

    • Dust Proof IP67 M19 Connector 3 Power 2 Signal Good Stretching Resistance
  • Dust Proof IP67 M19 Connector 3 Power 2 Signal Good Stretching Resistance

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: Jnicon
    Certification: TUV,UL,CE,CQC
    Model Number: M19

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pair
    Price: Negotiable
    Packaging Details: 1.Plastic bag;2.Carton;3.As per customer's requirements
    Delivery Time: 3~5 working days
    Payment Terms: T/T, Western Union, , D/P, D/A, L/C, MoneyGram
    Supply Ability: 10000 sets / Day
    Contact Now
    Detailed Product Description
    Connecting Model: Screw Locking Contact Pin: 3 Pin Power 2 Pin Signal
    Color: Black Current Rating: 20A
    Feature: Dust Proof Voltage Rating: 300V
    High Light:

    circular electrical connectors

    ,

    industrial circular connector

    3Power 2Signal IP67 Waterproof Circular Connectors , M19 Type Waterproof Connector



    Description of M19 Type Waterproof Connector



    Push locking waterproof connector IP67 is the main feacture of Jnicon M19 model. Its take only a few seconds to connect the male female connector, thanks to its advanced structure . it is widely used in many application. such as:



    • Communications Application
    • product coding machines
    • inventory product coding
    • inkjet systems
    • Solar System
    • industrial inkjet equipment
    • Electric power equipment
    • Laboratory forensic&pathology equipment
    • Communications equipment
    • Heavy machinery



    Features:

    • Rated current: 20A/10rms.
    • 2-4PIN power supply, 5-9PIN signal is optional.
    • IP67/68 rating
    • Voltage rating: 300V
    • Cable Range: 3~11mm
    • UL, TUV, CB, CCC, CE, RoHS approved



    Main characteristics

    • Sealed against dust and fluid (IP68)
    • Vibration resistance,impact resistance,stretching resistance
    • socket with cover
    • Cable assembly support
    • Customized cable size and length



    Operation Parameters
    Voltage Rating 500VAC max
    Current Rating 20A max + 5A
    Min Wire Size OD 3.0mm ~ 6.5mm
    Max Wire Size OD 6.5mm ~ 10mm
    Max.Cable Cross Section Area 0.3mm2 ~ 2.5mm2



     FAQ



    1. Q: What type waterproof connector do you have?
    A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.

    2. Q: How to buy your products?
    A: You need to do as followings:
    * Confirm Current Rating and Number of Contacts
    * Confirm Assembly style
    * Confirm Cable Wire guage
    * Confirm Cable Length and shipping way

    3. Q: How to contact with you?
    A: Please give us email,we have worked for this industry more than 10 years,So we can catch your problem,and solve it in a short time.if you have any question please feel free to let us know.
