| Place of Origin: | China |
| Brand Name: | Jnicon |
| Certification: | CE,TUV,UL,RoHS |
| Model Number: | M19 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1.Plastic bag;2.Carton;3.As per customer's requirements |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T,Paypal,L/C,Western Union |
| Supply Ability: | 10000/days |
| Product Name: | 2Pin Waterproof Connector | Connection Type: | Push Locking |
|---|---|---|---|
| IP Level: | IP67 | Rated Current: | 20A/300V |
| High Light: | 20A Waterproof Male Female Connectors,300VAC Waterproof Male Female Connectors,IP67 5 Pin Circular Connectors |
||

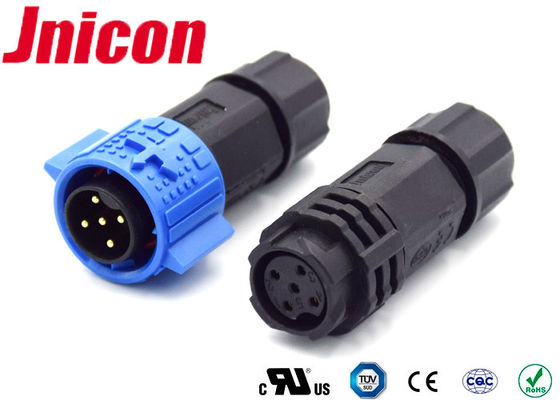

Circular Connector M19 Waterproof Male Female 5Pin Plug
| Operation Parameters | |
| Voltage Rating | 300VAC max |
| Current Rating | 10A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 6.5mm ~ 10.0mm |
| Max.Cable Cross Section Area | 0.3mm2 ~ 1.5mm2 |
Technical Specification
| Connector Model: | M19 waterproof connector 2pin |
| Waterproof level: | IP67 |
| Cable specification: | 20AWG-12AWG |
| Cable diameter range: | 4.5mm-12mm(18AWG-12AWG) |
| Core number: | 2 pin to 22pin |
| Rated current (A): | 20A |
| Operating voltage (AC.V.rms): | 300V |
| Withstand voltage (AC.V)1min: | 1500V |
| Contact resistance: | <5mΩ |
| Insulation resistance: | >500MΩ |
| Service | Cable length could be customized |
Main characteristics:
| Sealed against dust and fluid (IP67) |
| Vibration resistance, impact resistance, stretching resistance |
| Dust cover to male and female are available |
Application industries:
| Stage equipment | The smart grid | LED lighting |
| Medical equipment | Battery charging | Automation |
| Solar energy | Ship equipment | Agriculture |
| Electric power equipment | Vehicles | Ebike/motorcycle |
| Communications | Pool lights | Transportation |
Features
1. 2pin, 3pin, 9pin, 22 pin are available.
2. The max.cable diameter: 11.0 mm.
3. Your drawings and samples are warm welcomed since our professional R&D team can help to customize the items you want.
4. protection level: IP67
5. Screw locking style,easy to assemble. It can effectively resist vibration and shock, and can prevent broken connection caused by pulling cables. It is absolutely reliable and convenient to plug in very limited space.
