Wire To Wire Electrical IP67 Circular Connectors Screw Terminal Board Mounting

Wire To Wire Electrical IP67 Circular Connectors Screw Terminal Board Mounting

    • Wire To Wire Electrical IP67 Circular Connectors Screw Terminal Board Mounting
    • Wire To Wire Electrical IP67 Circular Connectors Screw Terminal Board Mounting
  • Wire To Wire Electrical IP67 Circular Connectors Screw Terminal Board Mounting

    Product Details:

    Place of Origin: China
    Brand Name: Jnicon
    Certification: UL
    Model Number: IP67 Waterproof Connector

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pair
    Price: Negotiable
    Packaging Details: 1.Plastic bag;2.Carton;3.As per customer's requirements
    Delivery Time: 3-5 working days
    Payment Terms: L/C, T/T,Paypal,Western Union
    Supply Ability: 100000pcs/day
    Contact Now
    Detailed Product Description
    Name: IP67 Waterproof Connector Connector Type: Board Mounting
    Certificate: UL/TUV/CE/ROHS Color: Black
    Material: High Performance Engineer Plastic Hardware Matel: Zinc Alloy

    Wire To Wire Electrical IP67 Waterproof Connector Screw Terminal


    Our advantages



    1. Sealed against dust and water (IP67).
    2. Vibration resistance,impact resistance,stretching resistance.
    3. Plug/unplug for more than 500 times
    4. The product is easy to install .Cost saving, convenient and quick.
    5.It is widely used and is recognized by many industry companies.Such as LED application,communication,new energy.
    6.Have a professional R&D team and provide the most effective solutions for customers



    Our services



    - CUL,UL, CE,CCC,ROHS, ISO9001:2008 Standard.

    -Supply OEM service,handle projects from the phase concet or processing

    -We have professional quality control system and R&D department to strictly -manufacture each product for splice connectors

    -100,000 pcs per month for splice connectors

    -National level laboratory , and have flexible production line, to make quick action to urgent customized needs for waterproof wire connectors .



    Product Description



    Connecting mode: screw
    Protection level: IP67
    Cable specification(power): 0.5mm2~ 1.5mm2 /20~16 AWG
    Contact diameter×Qty: Φ1.5×3
    Current rating(A): 20A
    Operating voltage(AC.V.rms): 300V
    Withstand voltage(AC.V)1min: 1500V
    Contact resistance: <3mΩ
    Insulation resistance: >500MΩ
    Durability: ≥500 mating &unmating cycles
    Temperature rating: -40°C~105°C
    Method of connecting cable: injection molding & lock screw
    Flammability rating UL94-V0
    Temperature rise: 20A contact temperature below 30°C, 25A contact temperature below 40°C, 30A contact temperature below 50°C


    Detailed Pictures

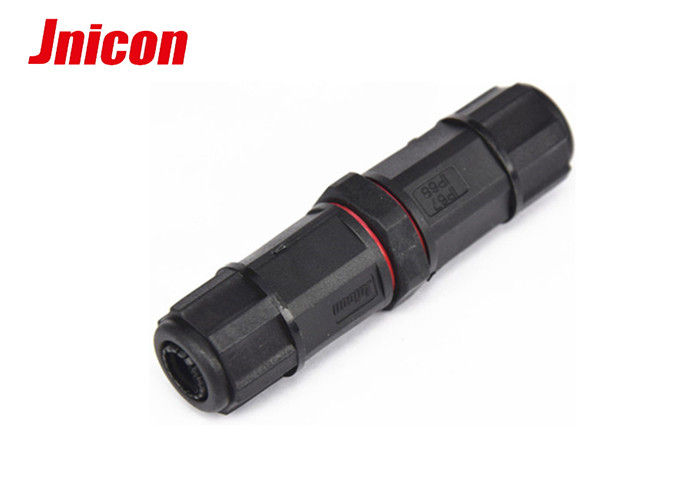

    Wire To Wire Electrical IP67 Circular Connectors Screw Terminal Board Mounting

    Product Dimension
    Wire To Wire Electrical IP67 Circular Connectors Screw Terminal Board Mounting
