Name: IP67 Waterproof USB Connector Motorcycle USB 3.0 Female Panel Mounting
Brand: Jnicon
SKU: USB connector
Rating: 5 (132 reviews)

Home Products Waterproof USB Connector

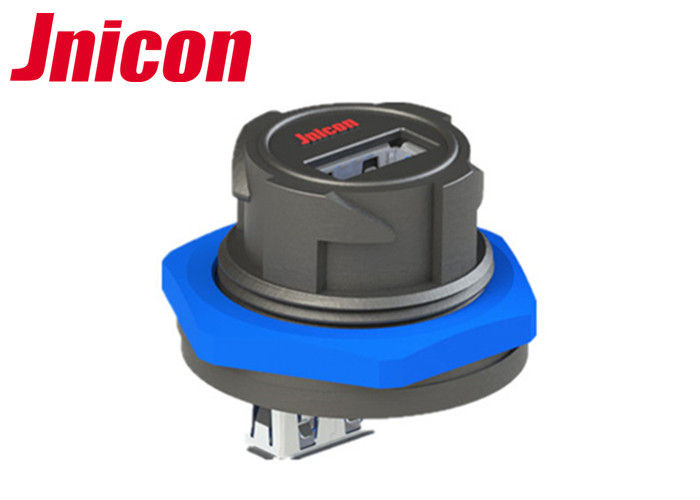

IP67 Waterproof USB Connector Motorcycle USB 3.0 Female Panel Mounting

Product Details:

Place of Origin:	China
Brand Name:	Jnicon
Certification:	CE,TUV,UL,RoHS
Model Number:	USB connector

Payment & Shipping Terms:

Minimum Order Quantity:	100 (10 Pairs of samples)
Price:	Negotiable
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3-6 working days
Payment Terms:	T/T,Paypal,L/C,Western Union
Supply Ability:	10000/days

Contact Now

Detailed Product Description

Protection Level:

IP67

Current Rating(A):

Material:

PPA

Connection Way:

Push Locking

Highlight:

watertight usb connector

circular usb connector

USB3.0 Female Panel mounting Waterproof USB Connector For Motorcycle

Description Of Waterproof USB Connector 3.0

Jnicon M25 USB connector is popular with multiple kinds of connection and installation type, different material and sizes, they can meet requirements from different application. USB2.0 and USB 3.0 , A type B type micro type available. Widely used in computers,digital cameras,scanner and other transmission equipment,Varies types,can achieve male and female conversion docking

Main Feacture

Manufacturer:Jnicon
Part Model: Waterproof USB connector
USB Interface: USB 3.0
USB Connector: Female - Female - pass through
USB Connections: Power + Data
Power Rating: 5A / 5V
Temperature Range: -40 to 105 deg C
Insulation: >500 megaohm
Contact Resistance: <30 milliohm

How to order Jnicon connectors?

Confirm the connectors model,according to your application technical request.
Confirm the protection level, IP44? IP65? IP67 Or IP68
Male Female needed or Not
Confirm the contacts quantity need to support
Confirm the cable gauge
Confirm the order quantity
If you still do not clear aboved,you may need our professional assist.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	30VDC max
Current Rating	5A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max.Cable Cross Section Area	0.5mm2 ~ 6.0mm2

M25 waterproof USB connectors, wire harness customization is welcome.

FAQ

1. Q: Are you a factory or trading company?

A: We are a factory. Located in Jnicon Industrial Park, Bao'an District,Shenzhen,China

2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.

3. Q: How can I get samples?

A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.

4. Q: How many materials you can provide?
A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.

5. Q: How does your factory do regarding quality control?
A: Quality is priority. Jnicon people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001,ISO14001.
