| Place of Origin: | China |
| Brand Name: | Jnicon |
| Certification: | CE,TUV,UL,RoHS |
| Model Number: | M19 |
| Minimum Order Quantity: | 100 (10 Pairs of samples) |
|---|---|
| Price: | Negotiable |
| Packaging Details: | High Quality export carton |
| Delivery Time: | 3-6 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000/days |
| Gender: | Male And Female Overmolded | Protection Level: | IP68 |
|---|---|---|---|
| Current Rating: | 20A | Cable Range: | 12mm Max |
| Connection Method: | Screw Locking Type | Warranty: | 5 Years |
| Highlight: | waterproof electrical wire connectors,waterproof wire quick connectors |
||

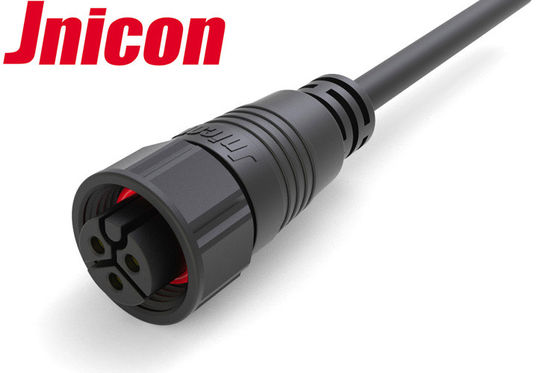

3 Poles Screw Locking Waterproof Wire Connectors , IP68 Power Cable Connector
Product Details
1. IP68 waterproof level connector
2. Waterproof cable connector sealed with cable.
3. 20A current rating
4. Multicores available
5. Screw locking connection method, easy to install and operate.
3 poles screw locking connectors is a high performance waterproof connector, could be used for underwater applications, such as pool light, underwater light, underwater robot, sea equipment, marine battery etc.
Technical Spec as below
| Connector type : | Sealed with cable/overmolded connector,other types available |
| Connector color: | Black, blue, yellow |
| Waterproof level: | IP68 |
| Cable specification: | 20AWG-12AWG |
| Cable diameter range: | 4.5mm-12mm |
| Contact diameter*No. | Φ1.0-Φ2.4 |
| Rated current (A): | 20A |
| Operating voltage (AC.V.rms): | 500V |
| Contact resistance: | <5mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥3000 mating and unmating cycles |
| Temperature rating: | -40°C~105°C |
| Connecting mode: | Solder type/screw terminal |
| Flame-resistance: | UL94-V0 |
Application & benefits to waterproof wire connector:
1. Cable length could be customized according to your requirements, it's great suitable for Outdoor LED light, LED equipment, grating, external wiring, CCTV, factory automation control, wireless bridge and other places need waterproof power extension use.
2. IP68 protection level, moisture-proof and Dust-proof waterproof connector, never leave your precious wires exposed and have a good protection on them.
3. Screw locking design, easy connection, convenient install, DIY tools, N for Neutral wire, G for Ground wire, L for live wire.
