Shenzhen Jnicon Technology Co., Ltd.
Professional Waterproof Connectors Manufacturer
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | Jnicon |
| Certification: | TUV, UL, 3C, CE, ROHS, ISO90001 |
| Model Number: | Waterproof Data Connector |
| Minimum Order Quantity: | 1 pair |
|---|---|
| Price: | negotiable |
| Packaging Details: | 1.plastic bag 2.carton 3.As per customer's requirement |
| Delivery Time: | 3-5 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pair/day |
| Product Type: | 5 Pin Waterproof Data Connector | Current Rating: | 10A |
|---|---|---|---|
| Voltage Rating: | 300V | Cable Gauge: | 24~16AWG |
| Number Of Contacts: | 2/3/4/5 Pins Are Available | Diameter Range: | MAX9.0mm |
| High Light: | waterproof ethernet connector,power signal connector,F Branch Waterproof Data Connector |
||

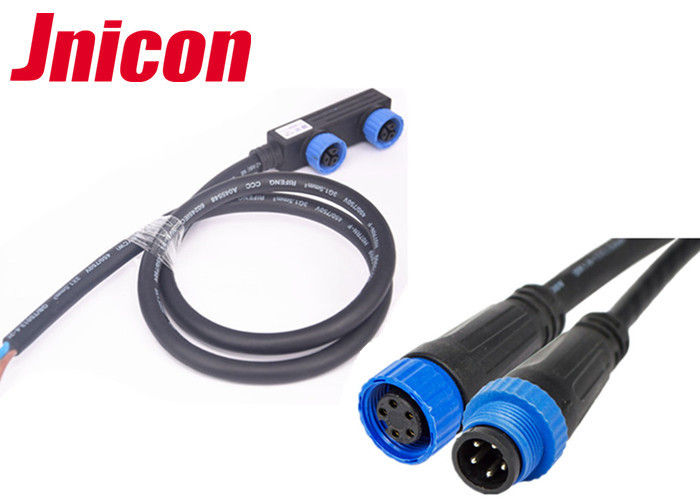

5 Pin Plug Waterproof Data Connector F Branch 2 Ways Sealed With Cable IP68
The feature of screw locking type 5 Pin Waterproof data connector:
• The current/voltage rating of IP68 waterproof connector are 10A/300V.
• multi-pins(2-5 pins) for varies industrial demands
• gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
• Screw locking style,easy to assemble.
• High current application safety and stable wire.
The specifiction of 10A waterproof circular connector
| Connecting mode | screw locking type |
| Protection level | IP68 |
| Cable specification | 0.5mm²~ 1.5mm²/20~16AWG |
| Diameter range | MAXΦ9mm |
| Current rating(A) | 10A |
| Operating voltage(AC.V.rms) | 300V |
| Withstand voltage(AC.V)1min | 1500V |
| Temperature rating | -40°C~105°C |
| Method of connecting cable | Solder connector |
| Prevent the combustion level | UL94-V0 |
Application:
M15 series connectors could be widely used in indoor & outdoor led lighting, LED screen, audio visual equipment, industrial and testing equipment, electricl power connection, landscape lights,underwater lights,equipments etc.
It can effectively resist vibration and shock, and can prevent broken connection caused by pulling cables. It is absolutely reliable and convenient to plug in very limited space.
Apply in harsh environment is still perfect.
Product material feature:
• the copper needles of the connector is adopted gold-plated technology,which can resist corrosion and suitable for high/low temperature, current transmission is more stable and safety.
• Our waterproof connector have protection level: IP68.
• Your drawings and samples are warm welcomed since our professional R&D team can help to customize the items you want.
Product detail picture
