Shenzhen Jnicon Technology Co., Ltd.
Professional Waterproof Connectors Manufacturer
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | Jnicon |
| Certification: | UL,CE |
| Model Number: | RJ45 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1.Plastic bag;2.Carton;3.As per customer's requirements |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 sets/day |
| Product Name: | Waterproof RJ45 Connector | Connection Method: | Plug With Chassis Mount |
|---|---|---|---|
| Cable Size: | 0.15-0.2mm2 | Cable Diameter: | 5.5-7mm |
| Cores No.: | 8 Pin | Voltage: | 500V |
| High Light: | waterproof rj45 ethernet connector,outdoor rj45 connector |
||

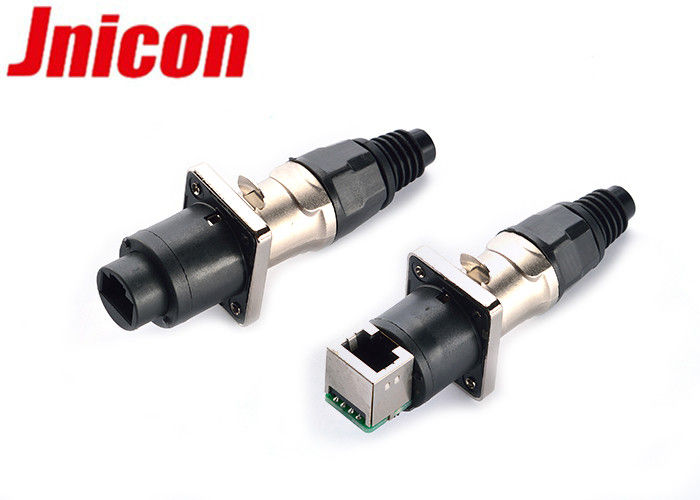

IP65 IP44 RJ45 Waterproof Connector For Outdoor Led Display Signal Connection
Description of RJ45 connector
1. IP44/IP65 are available.
2. UL approved
3. 8 pin bayonet connection mode
4. Plug and unplug waterproof connector
5. High performance engineer plastic and copper alloy
6. Standard solution for led display
Technical Data to RJ45 plug
| Number of contact | 8 |
| Withstanding voltage | 500V |
| Isulation resistance | <30Ω |
| Protection level | IP44/IP65 |
| Cable specification | 0.15-0.2mm²(26-24AWG) |
| Cable diameter | ∅5.5-7mm |
| Protection level | IP65 |
| Operating temperature | -25℃-80℃ |
| connecting mode | Bayonet |
RJ45 plug could be used with Powercon connector together, it's a standard plug for led display power and data connection.
IP44 and IP65 protection level available.
Dust cap is available to well protect your fixtures when off working.
RFQ
Q: Are you a factory or trading company?
A: Yes, we are definitely factory, you are very welcome to visit our factory at your convenience, which Located in B-9, Fubilun industrial park, Chaoyang rd,Yanchuan community, Songgang, Shenzhen, China
Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Connector and Contact Gender
* Confirm Assembly style
* Confirm Mating style ( series or parallel)
* Confirm Cable OD size
* Confirm Cable Length and Material.
Q: hello, i do not know what's kind of connector i need, but i need it for led connection.
A: hello my friend, we are pleased to provide complete solution for you if more details could be provided such as: current(amp), voltage, wire number, cable size etc.
Q: How can I get samples?
A: It's my honor to offer you samples, we could offer 3pcs each item for free charge but cost of freight would be on your side. If need more items, more quantity for each item, we will charge for the samples.
Q: Do you have a guarantee of your product quality?
A: Yes, we provide warranty for 3 years.
