Male And Female IP65 Waterproof LED Connectors 300V Power AC Plug And Socket

Male And Female IP65 Waterproof LED Connectors 300V Power AC Plug And Socket

  • Male And Female IP65 Waterproof LED Connectors 300V Power AC Plug And Socket
Male And Female IP65 Waterproof LED Connectors 300V Power AC Plug And Socket
Product Details:
Place of Origin: China
Brand Name: Jnicon
Certification: UL/CE/TUV/CQC/RoHS
Model Number: Waterproof LED Connector
Payment & Shipping Terms:
Minimum Order Quantity: 1 pair
Price: Negotiable
Packaging Details: 1.Plastic bag; 2.Carton; 3.As per customer's requirement
Delivery Time: 3-5 working days
Payment Terms: L/C,T/T,Paypal,Western Union
Supply Ability: 10000pcs/day
Contact Now
Detailed Product Description
Material: High Performance Engineering Plastics Mating Cycle: 500
MOQ: 1 Pair Product Name: Waterproof LED Connector
Plating: Gold-plated Color: Blue/Grey/Yellow/Black
High Light:

waterproof electrical connectors

,

waterproof led light connectors

Male And Female IP65 Waterproof LED Connector 300V Power AC Plug And Socket



Product Description



1. Waterproof LED Connector

2. 20A current rating

3. Blue/grey/yellow is available

4. 2pin/3pin/4pin available

5. Approved by UL,CE,TUV and RoHS

6. 3 years warranty



Performance


- Rated Voltage: 500VAC
- Rated Current: 20A
- Environmental: - 25℃- 80℃



Operating Parameters



Specifications
Connecting mode Latching lock
Protection level IP65
Cable specification 2.5mm2 (14AWG)
Diameter range Φ7mm ~Φ12mm
Contact diameter×Qty Φ2.0x3
Current rating(A) 20A
Operating voltage(AC.V.rms) 500V
Withstand voltage(AC.V)1min 2500V



Good quality exterior cable plug:

  Moisture-proof and Dust-proof, never leave your precious wires exposed and have good protection on them,this outdoor electrical box is safe for LED display.



Long service life exterior connector :

  UV resistance makes it anti-aging,3 years life time when used in normal environment(but don't immerse waterproof electrical connectors in the the water for long time )



FAQ



Q1.What’s your advantage? Why we choose you?
  A:1)Years experience of waterproof connectors production and R&D.We have the most professional techniques and team.

     2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.

     3)We use 100% new materials and the best production process, in consequence our defective rate is lower than 0.01%.



Q2.How can I get some samples?
  A:We are honored to offer you samples. New clients are expected to pay for the courier cost, the samples are free for you, this charge will be deducted from the payment for formal order


Q3.Are you a factory or trading company?
  A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.



Product Pictures

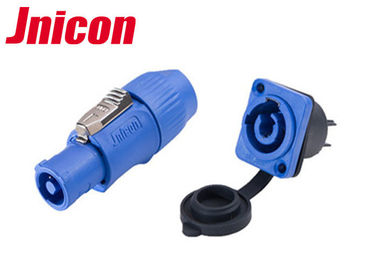

Male And Female IP65 Waterproof LED Connectors 300V Power AC Plug And Socket 0
