5 Pin IP68 M12 Waterproof Connector Male Female Outdoor Round Shape

5 Pin IP68 M12 Waterproof Connector Male Female Outdoor Round Shape

5 Pin IP68 M12 Waterproof Connector Male Female Outdoor Round Shape

Product Details:

Place of Origin: China
Brand Name: Jnicon
Certification: CE,TUV,UL,RoHS
Model Number: M12

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: High Quality export carton
Delivery Time: 3-6 working days
Payment Terms: T/T,Paypal,L/C,Western Union
Supply Ability: 10000/days
Contact Now
Detailed Product Description
Current Rating(A): 10A Connection Way: Screw Locking
Operating Voltage: 300V Assembly Wire: Soldering
Color: Sliver,Black Contact Material: Gold-Plated

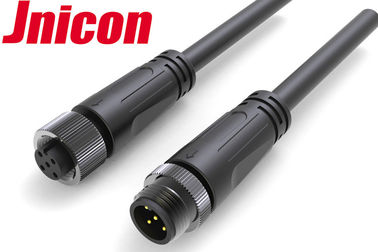

5Pin M12 Waterproof Male Female Connector Outdoor Round Shape IP68



Description of 5Pin M12 connector



M12 waterproof power connector is the perfect solution to make your own waterproof connection underwater well. Thanks to its screw locking structure and installation finish perfectly.This M12 waterpoof circular connectors is widely used for LED lighting, Communications Application,product coding machines,Electric power equipment,Communications equipment and Heavy machinery.

This 5pin male female connectors has a waterproof rating of IP68.Soldering is NOT required to attach the two cables inside each main body. Once each side is connected, the wiring is fully protected from the elements.



Main Characteristic:

  • ​IP68 Protection Level
  • 2pin,3pin,4pin,5pin available
  • Cable to cable type,cable to panel mount type
  • Cable over-molding
  • Any cable size and length available
  • Connection solution provided
  • 7*24H Online service
  • Local sales team available



Electrical Parameters Of M12 male connector



Number of Poles 5Pin
Current Rating 1A max
Voltage Rating 300VAC max
Durability Voltage 1500VAC @ 60 s.



Operation Parameters of M12 female waterproof connector



Voltage Rating 300VAC max
Current Rating 10A max
Min Wire Size OD 3.0mm ~ 6.0mm
Max Wire Size OD 6.5mm ~ 9.0mm
Max.Cable Cross Section Area 0.3mm2 ~ 0.75mm2



Technical Parameters of 5pin M12 waterproof connector



Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
