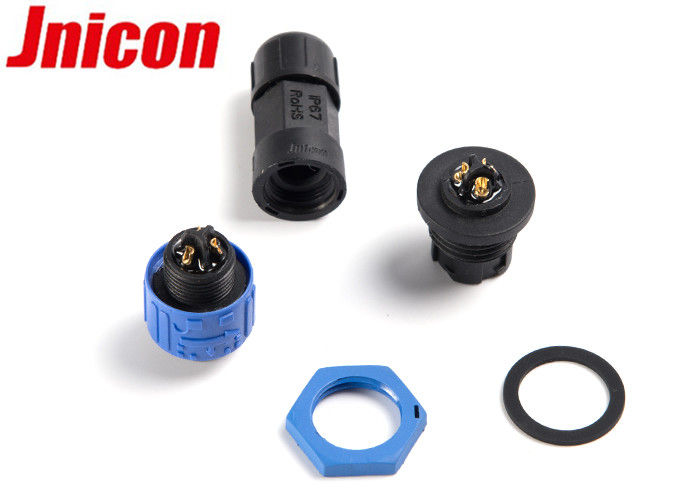

Round Panel Mount Cable Connector , M16 Plug Socket 3 Poles Waterproof Connector
Product features:
1. Quick lock waterproof connector
2. IP67 protection level
3. Could be field assembly to your applications
4. Multicolor available, such as Blue,black
5. Rated current :10A
M16 panel mount connectors could be a good option for led lighting fields, no matter for outdoor roading lighting, led display, garden lights etc.
IP67 and IP68 are available, it could be underwater and underground using and still keep good performance.
Technical information :
| Connector color: | Black, blue |
| Waterproof level: | IP67/IP68 |
| Cable specification: | 0.3-1.5mm2 |
| Cable diameter range: | 4.5mm-11mm |
| Rated current (A): | 10A |
| Operating voltage (AC.V.rms): | 300V |
Reliability to M16 connectors :
| Contact resistance: | <5mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥3000 mating and unmating cycles |
| Temperature rating: | -40°C~105°C |
| Connecting mode: | Solder type/screw terminal |
| Flame-resistance: | UL94-V0 |
High quality material to 9 pin connector:
| Sealed against dust and fluid (IP67&IP68) |
| Vibration resistance, impact resistance, stretching resistance |
| Dust cover available |
