Shenzhen Jnicon Technology Co., Ltd.
Professional Waterproof Connectors Manufacturer
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | Jnicon |
| Certification: | TUV, UL, 3C, CE, ROHS, ISO90001 |
| Model Number: | Waterproof LED Connector |
| Minimum Order Quantity: | 1 pair |
|---|---|
| Price: | negotiable |
| Packaging Details: | 1.plastic bag 2.carton 3.As per customer's requirement |
| Delivery Time: | 3-5 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pair/day |
| Product Type: | M16 2 Pin Push Locking Waterproof LED Connector | Current Rating: | 10A |
|---|---|---|---|
| Voltage Rating: | 300V | Cable Gauge: | 20~18AWG |
| Contact Diameter: | ∅1.5mm/number | Operation Temperature: | -40℃~105℃ |
| High Light: | waterproof led light connectors,led light cable connector |
||

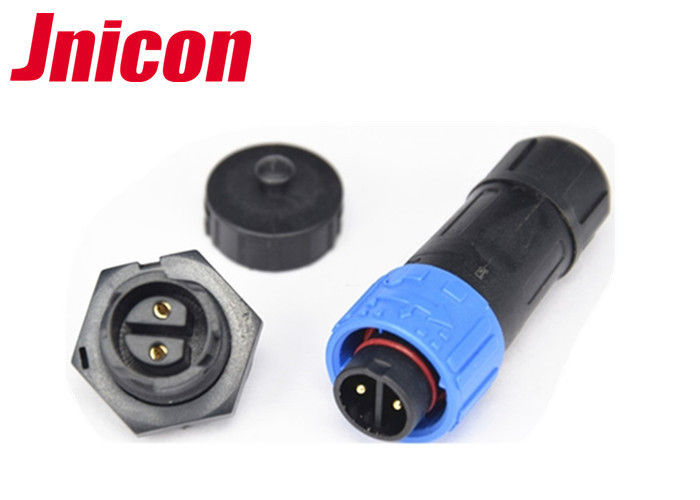

M16 2 Pin Push Locking Waterproof LED Connector IP67 Dust Cover
More details of M16 2 Pin push locking Waterproof LED connector:
• The current/voltage rating of IP67 or IP68, waterproof LED connector are 10A/300V.
• multi-pins(2-8 pins) for varies industrial demands
• the copper needles of the LED connector is adopted gold-plated technology, which can resist corrosion and suitable for high/low temperature, current transmission is more stable and safety.
The specifiction of 2 pin 10A waterproof LED connector
| SPECIFICATION | |||||
| Designation | 3 pin male female waterproof LED connector | ||||
| Model No. | 52-100211-01 | ||||
| Item | Specification | ||||
| 1. Electrical characteristics | |||||
| 1A | Contact Resistance | 10mΩ max. | |||
| 1B | Insulation Resistance | 10MΩ min. | |||
| 1C | Withstand Voltage | 1500V AC There shall be no breakdown. | |||
| 1D | Rating | 10A 300V | |||
| 2. Mechanical | |||||
| 2A | Mating/Unmating force | Mating & Unmating Force: 10~30N Test data:22N,23N,25N,26N,23N | |||
| 2B | Life test | Mating & Unmating 500 cycles | |||
| 3. Material | |||||
| 3A | Contact Plating | 1u" gold plating | |||
| 3B | Contact material | Brass (C3604) | |||
| 3C | Housing material | PA66 | |||
| 4. Environmental | |||||
| 4A | Flammability | UL 94V-0 | |||
| 4B | Operation temperature range: | -30℃~+80℃ | |||
| 4C | Preservative temperature range: | -40℃~+85℃ | |||
More detail:
• Your drawings and samples are warm welcomed since our professional R&D team can help to customize the items you want.
• gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
• Screw locking style and push locking,easy to assemble.
• High current application safety and stable wire.
Application:
Waterproof LED connectors could be widely used in indoor & outdoor led lighting, LED screen, audio visual equipment, industrial and testing equipment, electricl power connection, landscape lights,underwater lights,equipments etc.
It can effectively resist vibration and shock, and can prevent broken connection caused by pulling cables. It is absolutely reliable and convenient to plug in very limited space.
Product detail picture
