| Place of Origin: | China |
| Brand Name: | Jnicon |
| Certification: | TUV, UL, 3C, CE, ROHS, ISO90001 |
| Model Number: | Waterproof USB Connector |
| Minimum Order Quantity: | 1 pair |
|---|---|
| Price: | negotiable |
| Packaging Details: | 1.plastic bag 2.carton 3.As per customer's requirement |
| Delivery Time: | 3-5 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pair/day |
| Product Name: | USB 3.0 Waterproof USB Connector Plug Socket | Connector Type: | USB 3.0 Connector |
|---|---|---|---|
| Transfer Rate: | 5Gbits/second | Contact Material: | Brass With Gold Plated |
| Operating Temperature: | -40 ~+ 80 ℃ | Protection Level: | IP67 And IP68 |
| High Light: | watertight usb connector,water resistant usb connector |
||

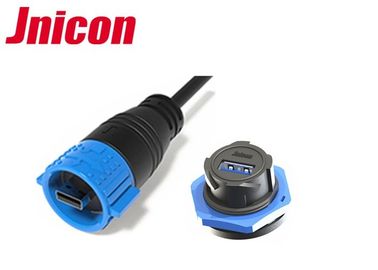

USB 3.0 Plug Socket Waterproof USB Connector With Dust Cap High Speed IP67
More details of USB 3.0 plug socket waterproof connector:
Jnicon waterproof USB connector Backward compatible with USB 2.0 and USB 1.1, speedtech USB 3.0 generation cables increase transfer rate to 5Gbits/sec. (SuperSpeed), greater than 10 times more on performance of USB 2.0 (480Mbits/sec.) SuperSpeed USB has Sync-N-Go technology that minimizes user waiting-time. SuperSpeed USB will provide Optimized Power Efficiency.
the copper needles of the connector is adopted gold-plated technology,which can resist corrosion and suitable for high/low temperature, current transmission is more stable and safety.It can effectively resist vibration and shock, and can prevent broken connection caused by pulling cables. It is absolutely reliable and convenient to plug in very limited space.

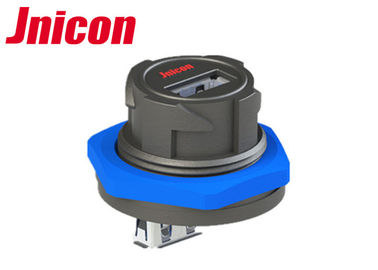

The specifiction of Panel Mount USB 3.0 Waterproof USB Connector A Type:
| USB 3.0 Plug Socket Waterproof USB Connector | |
| Connecting mode | push Locking connector |
| Protection level | IP67 |
| Gender | male and female(plug socket) |
| Transfer rate | 5Gbits/sec |
| Withstanding voltage(AC.V)1min | 1000V |
| Durability | ≥1000 mating&unmating cycles |
| Temperature rating | -40°C~80°C |
| Method of connecting cable | Soldering |
| Prevent the combustion level | UL94-V0 |
| Material | |
| Insulated parts | High performance engineering plastics |
| Contact pin | Copper alloy(gold-plated) |
| Main characteristics | |
| Sealed against dust and fluid (IP67/IP68) | |
| Vibration resistance,impact resistance,stretching resistance | |
Application:
Waterproof USB connectors Widely used in: computers, digital cameras, scanner and other transmission equipment. Varies types, can achieve male and female conversion docking, independent female, male with cable and so on.
Your drawings and samples are warm welcomed since our professional R&D team can help to customize the items you want.
With PBT shell performance stable, compression, anti-explosion and anti-deformation unique dock connecting to extend cable length and Solid connections system can provide the solutions for data transmission in harsh environments, easy to install and operate.

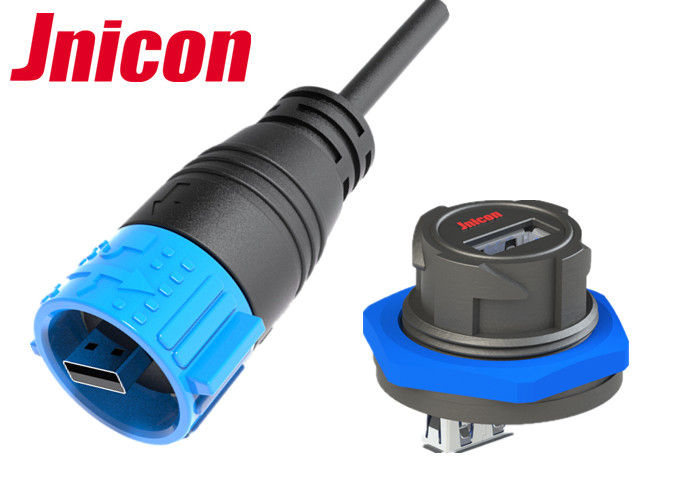

Product detail picture
Packing and Delivery:
