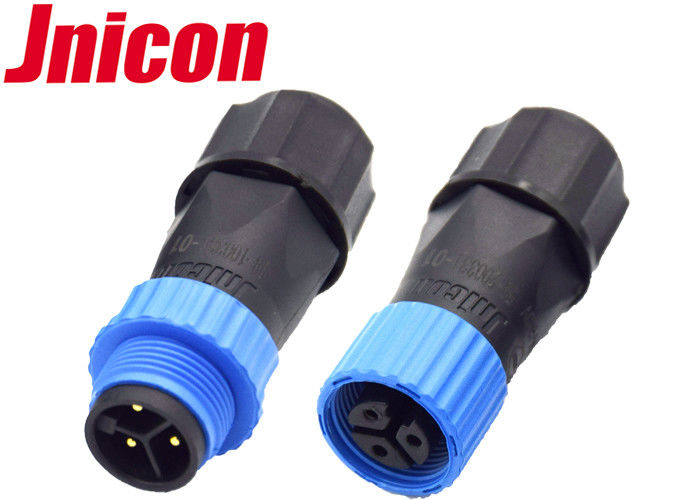

M15 Field Assembly 3 Pin Electrical Power Connectors , Water Resistant Cable Connector For Street Lightings

M15 Field Assembly 3 Pin Electrical Power Connectors , Water Resistant Cable Connector For Street Lightings

M15 Field Assembly 3 Pin Electrical Power Connectors , Water Resistant Cable Connector For Street Lightings

Product Details:

Place of Origin: China
Brand Name: Jnicon
Certification: UL,TUV,CE,ROHS,CQC
Model Number: M15

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time: 3-5 working days
Supply Ability: 10000pcs/day
Contact Now
Detailed Product Description
Rated Current: 10 Amps Color: Blue And Black
Cable Range: 0.3-1.5mm2 Warranty: 5 Years
Connector Color: Black, Blue Contact Resistance: <5mΩ

M15 Field Assembly 3Pin Male Female connectors For Street lightings





Connnector features:



1. Quick lock waterproof connector

2. IP67 protection level

3. Could be field assembly to your applications

4. Multicolor available, such as Blue,black

5. Rated current :10A



 M15 Field Assembly 3Pin Male Female connectors is popular to LED driver using, no long need to worry about how to connector the cable carried on the LED driver, you need only this Field assembly male female connector to solve it.



Technical information :



Connector color: Black, blue
Waterproof level: IP67/IP68
Cable specification: 0.3-1.5mm2
Cable diameter range: 4.5mm-11mm
Rated current (A): 10A
Operating voltage (AC.V.rms): 300V



Connector's reliability :



Contact resistance: <5mΩ
Insulation resistance: >500MΩ
Durability: ≥3000 mating and unmating cycles
Temperature rating: -40°C~105°C
Connecting mode: Solder type/screw terminal
Flame-resistance: UL94-V0



High quality material:



Sealed against dust and fluid (IP67&IP68)
Vibration resistance, impact resistance, stretching resistance
Dust cover available



RFQ



Q: hello, i do not know what's kind of connector i need, but i need it for led connection.

A: hello my friend, we are pleased to provide complete solution for you if more details could be provided such as: current(amp), voltage, wire number, cable size etc.

Q: How can I get samples?

A: It's my honor to offer you samples, we could offer 3pcs each item for free charge but cost of freight would be on your side. If need more items, more quantity for each item, we will charge for the samples.

Q: How many materials you can provide?

A: Connectors and cable are made by different material. Usually connector ia made by PVC/Nylon and cable is made by PVC/Rubber/PU/Silicone . Meanwhile, OEM/ODM both accepted .
