Shenzhen Jnicon Technology Co., Ltd.
Professional Waterproof Connectors Manufacturer
|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||1.Plastic bag;2.Carton;3.As per customer's requirements|
|Delivery Time:||3-5 working days|
|Payment Terms:||T/T,Paypal,L/C,Western Union|
|Rated Current:||5A/300V||Connection Type:||Push Locking|
|Product Name:||16Pin Waterproof Connector||IP Level:||IP67|
Push Locking Waterproof Circular Connectors,
Inline Waterproof Circular Connectors,
PA66 16 Pin Circular Connectors

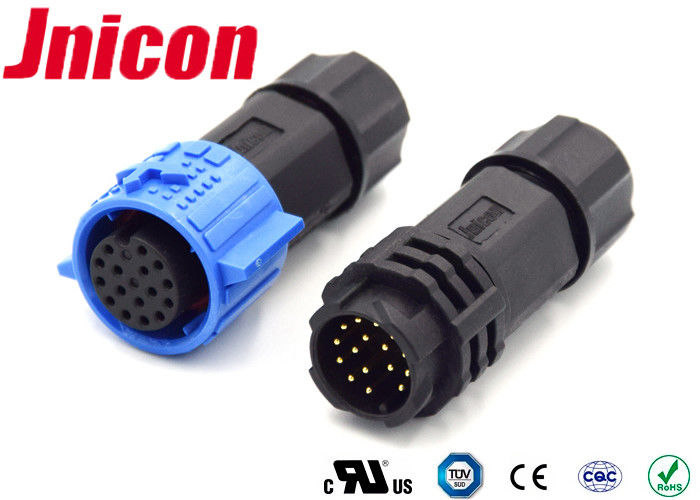

Inline Industrial 16 Pin Waterproof Circular Connectors M19 Straight Cable To Cable
|Contact Resistance||10 mΩ max|
|Insulation Structure||500 MΩ at 500VDC|
|Operating Temperature||-40°C ~ +105°C|
|IP Class||IP67 (1m / 30min)|
|Contact/Terminal Material||Gold Plated Brass|
|Voltage Rating||300VAC max|
|Current Rating||5A max|
|Min Wire Size OD||3.0mm ~ 6.0mm|
|Max Wire Size OD||6.5mm ~ 10.0mm|
|Max.Cable Cross Section Area||0.3mm2 ~ 1.5mm2|
|Stage equipment||The smart grid||LED lighting|
|Medical equipment||Battery charging||Automation|
|Solar energy||Ship equipment||Agriculture|
|Electric power equipment||Vehicles||Ebike/motorcycle|
1. Q: Are you a factory or trading company?
A: We are a factory. Located in Jnicon Industrial Park, Bao'an District,Shenzhen,China
2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.
3. Q: How can I get samples?
A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
4. Q: How many materials you can provide?
A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
5. Q: How does your factory do regarding quality control?
A: Quality is priority. Jnicon people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001,ISO14001.
