M25 Waterproof Panel Mount Connector IP67 Push Locking With Cap Cover

M25 Waterproof Panel Mount Connector IP67 Push Locking With Cap Cover

  • M25 Waterproof Panel Mount Connector IP67 Push Locking With Cap Cover
  • M25 Waterproof Panel Mount Connector IP67 Push Locking With Cap Cover
M25 Waterproof Panel Mount Connector IP67 Push Locking With Cap Cover
Product Details:
Place of Origin: Shenzhen,China
Brand Name: Jnicon
Certification: UL,TUV,CE,ROHS,CQC
Model Number: Waterproof circular connector
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time: 3-5 working days
Payment Terms: L/C,, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 sets/day
Contact Now
Detailed Product Description
Connector Type: Push Locking IP Rated: IP67
Current Rating: 50A Max Cable Diameter: 4.5-11mm
Type: Single Or Double Arm Pole: 6 Pole,4 Pole
High Light:

M25 waterproof panel mount connector

,

Push Locking waterproof panel mount connector

,

IP67 waterproof panel mount power connector

Double Screw Locking Wire 2Pin Male Cable Femal Waterproof Panel Mount Connector With Cap Cover

Quick Details of 2Pin waterproof Connector


This M25 waterproof power Connector has a waterproof rating of IP67 with Double Screws for each wire locking,more strong and reliable.

To assemble the M25 Outdoor Waterproof Connector,only a Philips Screwdriver is required to attach the two wires inside each main body.

Once each side is connected, the wiring is fully protected from the elements.

Once assembled, the M25 Outdoor Waterproof Conector is easy to plug and play while keeping the elements and water out of splices and junctions.

To disconnect, just unscrew the main body and pull apart the two ends.The M25 Waterproof conector has multiple waterproofing levels, consisting of o-rings, waterproof sealant, and flexible end seals designed to tighten and close awhen screwed together.


Main features of M25 Waterproof Connector

1. Advanced structure: IP67 self locking connector
2. Multicore:2,3,4,5,6,7,8,9 to 32 pins are optional
3. Connection method: soldering(welding),screw terminals.
4. Assembly: cable to cable ,male and female without cable
5. Certifications: UL, TUV, CE,ROHS,CQC.
6. Connection method: push pull locking type


Electrical Parameters
Number of Poles2
Current Rating50A max
Voltage Rating600VAC max
Durability Voltage2500VAC @ 60 s.



Technical Parameters
Contact Resistance10 mΩ max
Insulation Structure500 MΩ at 500VDC
Operating Temperature-40°C ~ +105°C
IP ClassIP67 (1m / 30min)
Mold MaterialPA66
Contact/Terminal MaterialGold Plated Brass
Seal MaterialSilicone
Operation Parameters
Voltage Rating600VAC max
Current Rating50A max
Min Wire Size OD6.5mm ~ 10mm
Max Wire Size OD10.5mm ~ 18mm
Max.Cable Cross Section Area0.5mm2 ~ 6.0mm2


RFQ

Q: How to buy your products?
A: You need to do as followings:
Confirm Current Rating and Number of Contacts
Confirm Connector and Contact Gender
Confirm Assembly style
Confirm Mating style ( series or parallel)
Confirm Cable OD size
Confirm Cable Length and Material.
Q: hello, i do not know what's kind of connector i need, but i need it for led connection.
A: hello my friend, we are pleased to provide complete solution for you if more details could be provided such as: current(amp), voltage, wire number, cable size etc.
Q: How can I get samples?
A: It's my honor to offer you samples, we could offer 3pcs each item for free charge but cost of freight would be on your side. If need more items, more quantity for each item, we will charge for the samples.

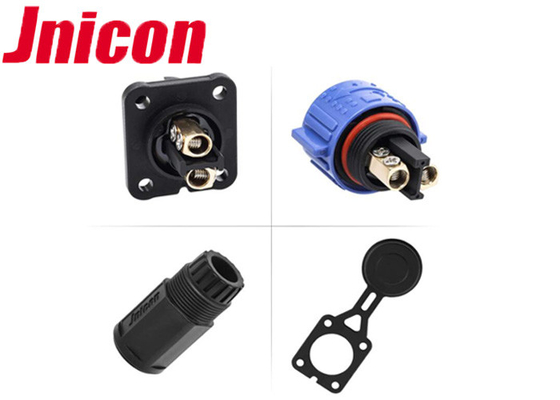

M25 Waterproof Panel Mount Connector IP67 Push Locking With Cap Cover 0

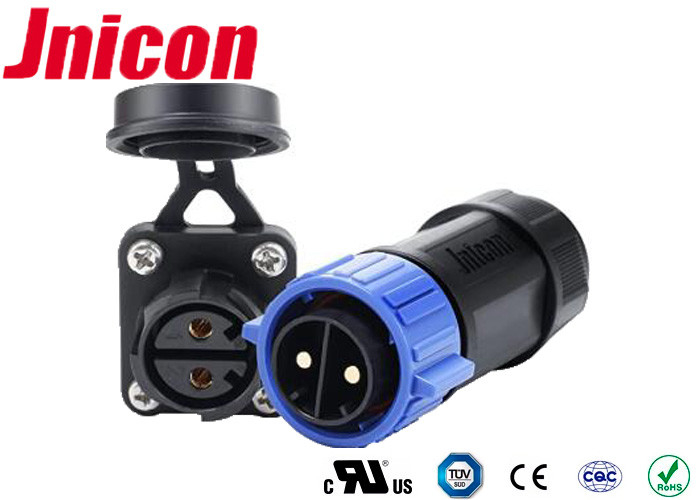

M25 Waterproof Panel Mount Connector IP67 Push Locking With Cap Cover 1
