5 Pin Electric Plug Waterproof Male Female Connectors , Power Plug With Socket
Product Details:

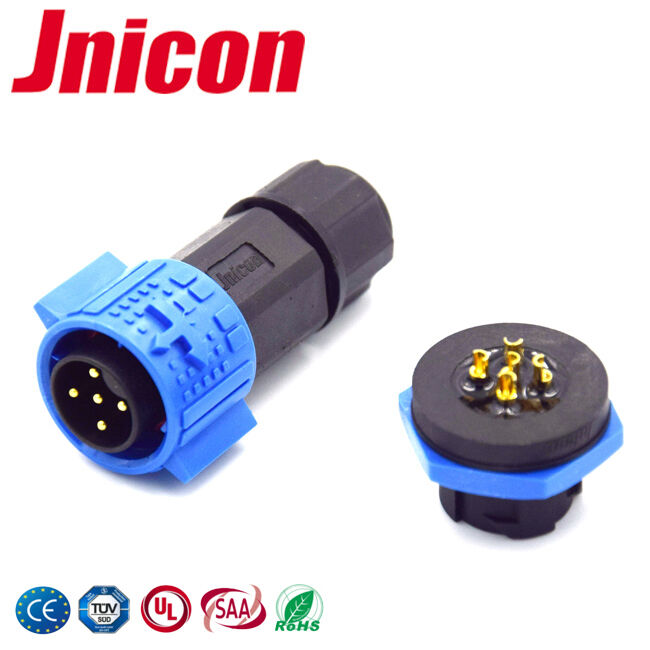

M19 5 pin connector with push locking connection way and multi-color are optional, it's helpful for you to distinguish output and input and to reduce the mistake when your workers operate it.
Moisture-proof and Dust-proof waterproof connector, never leave your precious wires exposed and have a good protection on them.
1. Multicore are optional, such as 2 pin,3pin,4pin,5pin,6pin
2. Connection method: push locking, screw locking
3. Connector type: cable to cable , panel mount type available
4. Certification: UL, TUV, RoHs, CQC,CE
5. Max current: 10A/300V
6. IP67 protection level
7. Contacts golden plated
Basic Spec:
| Connecting mode: |
Push pull locking waterproof connector |
| Core number: |
5 pin |
| Connector type : |
Assembly type circular connector |
| Connector color: |
Black,blue,yellow |
| Waterproof level: |
IP67 |
M16 screw locking connector with different type available, such as assembly type, overmolded wire to wire, panel mount, to provide you various options no matter for led lighting or industrial or anywhere need to connect electrical power.
IP68 waterproof level, never worry its waterproof condition, 5 years working life at least.
Technical Specification:
| Cable specification: |
20AWG-16AWG |
| Cable diameter range: |
4.5mm-12mm |
| Rated current (A): |
5A |
| Operating voltage (AC.V.rms): |
300V |
| Withstand voltage (AC.V)1min: |
1000V |
IP67 protection level makes your application more stable and durable, never worry its performance.
Great suitable for Outdoor LED light, LED equipment, grating, external wiring, CCTV, factory automation control, wireless bridge and other places need waterproof power extension use.
Reliable Connectors
| Contact resistance: |
<5mΩ |
| Insulation resistance: |
>500MΩ |
| Durability: |
≥3000 mating and unmating cycles |
| Temperature rating: |
-40°C~105°C |
| Connecting mode: |
Solder type/screw terminal |
| Flame-resistance: |
UL94-V0 |
Easy connection, convenient install, DIY tools, and no need to pinch-off cable electrical plastic sets, just unscrew the ends of waterproof connector, connect the wire correctly.
