M12 Waterproof Quick Disconnect Wire Connectors ODM Brass Gold-Plated Connector

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	Jnicon
Certification:	UL , CE , CQC , ROHS
Model Number:	M12

Payment & Shipping Terms:

Minimum Order Quantity:	100 (10 Pairs of samples)
Price:	Negotiable
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3 - 5 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, , Paypal
Supply Ability:	10000 / day

Contact Now

Detailed Product Description

Current/Voltage:	10A/300V	Waterproof Rating:	IP67
Connect Material:	Brass Gold - Plated	Shell Material:	PA66
Flame-resistant Rating:	UL94-V0
Highlight:	M12 waterproof wire connectors , brass gold-plated wire connectors , quick disconnect waterproof connectors

Electrical IP67 Waterproof Connector 3 Pin Gold - Plated Connect Material

Production

1. Type : cable overmold quick - locking connector

2. Material of cable : rubber , pvc , nylon

3. Length of cable : per your requirement .

4. Usually apply in lighting

5. Max current : 10A

Parameter of M12 3Pin IP67 Waterproof Connector

Specification
Product name	M12 3Pin connector
Current	10A
Voltage	300V
Contact diameter X number	φ1.5
Withstanding voltage	1000V
Protection level	IP67
Cable Specification	0.5mm-1.5mm2
Diameter range	MAXφ9.0mm
Operating temperature	-40℃ - 105℃
Connecting mode	Qick - locking

There are also many other IP67/ IP68 waterproof connector in our company
Current : 10A , 20A , 30A , 50A
Voltage : 300V / 500V
Color of lock ring is optional : black , yellow , blue , white , gray
Just feel free to tell me your requirement , I will recommand the corresponding product for you

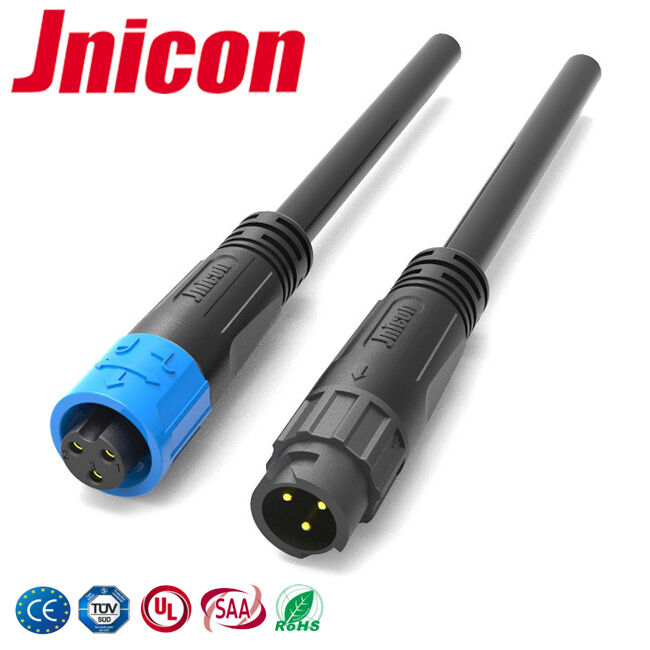

Picture of 3Pin IP67 Waterproof Connector

M12 Waterproof Quick Disconnect Wire Connectors ODM Brass Gold-Plated Connector

Service from Us

Q : I am interested in your connectors .

A : Yes , please confirm the information as follow :

The curren and voltage in the datasheet . if it can meet your requirement . if not , please tell you request .
Confirm the cable specification

Q : Do you provide the assembly connector without cable ?

A : Yes , we can provide the assembly type .

Q : Can you provide free samples ?

A : Sure , we support 1 - 3 sets free samples for quality test , but we do not in charge of shipping cost .

Q : Is there any other number of pins

A : There are not only 3pin , but also 2pin , 4pin , 5pin .
