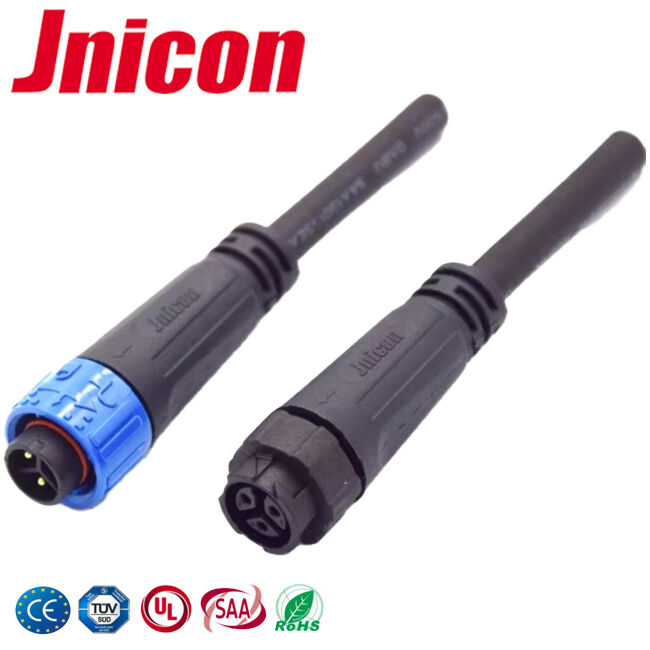

Name: 300V M16 3 Phase Power Connector Push Lock IP67 Wire Connector Waterproof
Brand: Shenzhen Jnicon Technology Co., Ltd.
SKU: M16
Price: 2.20 USD
Availability: InStock

Home Products Waterproof Male Female Connector

300V M16 3 Phase Power Connector Push Lock IP67 Wire Connector Waterproof

Product Details:

Place of Origin:	China
Brand Name:	Jnicon
Certification:	UL,TUV,CE,ROHS,CQC
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	100 (10 Pairs of samples)
Price:	Negotiable
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3-5 working days
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000 sets/day

Contact Now

Detailed Product Description

Protection Level:

IP67

Current Rating:

10A/300V Power Connector

Product Name:

Waterproof Molded Cable Connector

Application:

For Outdoor Indoor Power Extension

Highlight:

300V M16 3 phase power connector

IP67 waterproof wire connector

push lock waterproof male female connector

M16 10Amps 3 Poles Cable Connector , Waterproof Underground Cable Connector

Product description

Overmolded cable connector is a high end connection solution, cable length and size are depended by your application, we could customized it for you, different types connector are available, such as panel mount, cable to cable, connector without cable etc.

Push locking and screw locking are optional.

1. Multi-pins connector for different industrial demands

2. High quality outer case,more fire safety,stable, compression, anti-explosion and anti-deformation

3. Gold-plated contact, high performance of corrosion resistance and electrical

4. Conductivity effectively deal with temperature rise.

5. IP67 waterproof level.

6. Rated current : 10Amps

7. Long service life

Technical data:

Connection way:	Overmolded cable connector
Cores No.:	2pin,3pin,4pin and multipin are available
Connector type :	Push locking connector
Waterproof level:	IP67
Cable specification:	22AWG-18AWG
Cable diameter range:	4.5mm-11mm
Rated current (A):	10A
Operating voltage (AC.V.rms):	300V
Withstand voltage (AC.V)1min:	1500V
Contact resistance:	<5mΩ
Insulation resistance:	>500MΩ

Material:

Shell and insulated parts:	High performance engineering plastics
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel

Application fields:

Stage equipment
The smart grid
LED lighting
LED display
Medical equipment
Battery charing
Automation
Solar energy equipment
Ship equipment
Agriculture
Electric power equipment
Vehicle equipment
Ebike/motorcycle
Communications equipment
Transportation

300V M16 3 Phase Power Connector Push Lock IP67 Wire Connector Waterproof 0

300V M16 3 Phase Power Connector Push Lock IP67 Wire Connector Waterproof 1
