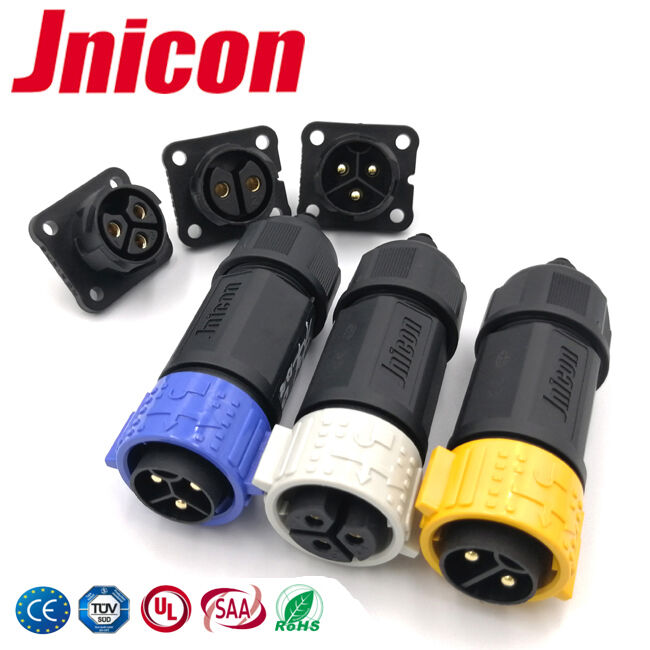

Multi Pin Screw Terminal Outdoor Electrical Connectors 50A IP67 Waterproof
Description
This M25 waterproof power Connector is very popular in New 5G Base station Application,
With a waterproof rating of IP67, It could work in the outdoor enviroment perfectly.And Its easy to assemble the M25 Outdoor Waterproof Connector,only a Screwdriver is required to attach the two wires inside each main body. Once each side is connected, the wiring is fully protected from the elements.
Once assembled, the M25 Outdoor Waterproof Conector is easy to plug and play while keeping the elements and water out of splices and junctions. To disconnect, just unscrew the main body and pull apart the two ends.The M25 Waterproof conector has multiple waterproofing levels, consisting of o-rings, waterproof sealant, and flexible end seals designed to tighten and close awhen screwed together.
Main features
1. Advanced structure: IP67 self locking connector
2. Multicore:2,3,4,5 pins are optional
3. Connection method: soldering(welding),screw terminal
4. Assembly: cable to cable ,male and female without cable
5. Certifications: UL, TUV, CE,ROHS,CQC.
6. Connection method: push pull locking type
| Electrical Parameters |
| Number of Poles |
2/3/4/5 |
| Current Rating |
50A max |
| Voltage Rating |
600VAC max |
| Durability Voltage |
2500VAC @ 60 s. |
| Technical Parameters |
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
| Operation Parameters |
| Voltage Rating |
600VAC max |
| Current Rating |
50A max |
| Min Wire Size OD |
6.5mm ~ 10mm |
| Max Wire Size OD |
10.5mm ~ 18mm |
| Max.Cable Cross Section Area |
0.5mm2 ~ 6.0mm2 |
Application Of Electrical Wire Connectors
- LED lighting
- outdoor soft strip display
- electrical equipment
- automated robots
- electric bicycles
- Ships
- electric vehicles
Advantage Of Electrical Wire Connectors
Electrical Wire Connectors is simply disassembled and assembled by locking the tail nut, so that the connector and the cable form a perfect fit, not easy to fall off, and its waterproof effect can achieve to IP67.
● good performance: use standard super five pure copper four stranded double wire and crystal head
● easy connection: no welding work, no installation tools, the standard crystal head can be directly inserted, can achieve rapid installation and use.
● waterproof and dustproof meet the requirements of IP67 standard.
● threaded connection, safe and reliable, impact, vibration, tensile
RFQ
Q: How to buy your products?
A: You need to do as followings:
Confirm Current Rating and Number of Contacts
Confirm Connector and Contact Gender
Confirm Assembly style
Confirm Mating style ( series or parallel)
Confirm Cable OD size
Confirm Cable Length and Material.
Q: hello, i do not know what's kind of connector i need, but i need it for led connection.
A: hello my friend, we are pleased to provide complete solution for you if more details could be provided such as: current(amp), voltage, wire number, cable size etc.
Q: How can I get samples?
A: It's my honor to offer you samples, we could offer 3pcs each item for free charge but cost of freight would be on your side. If need more items, more quantity for each item, we will charge for the samples.
