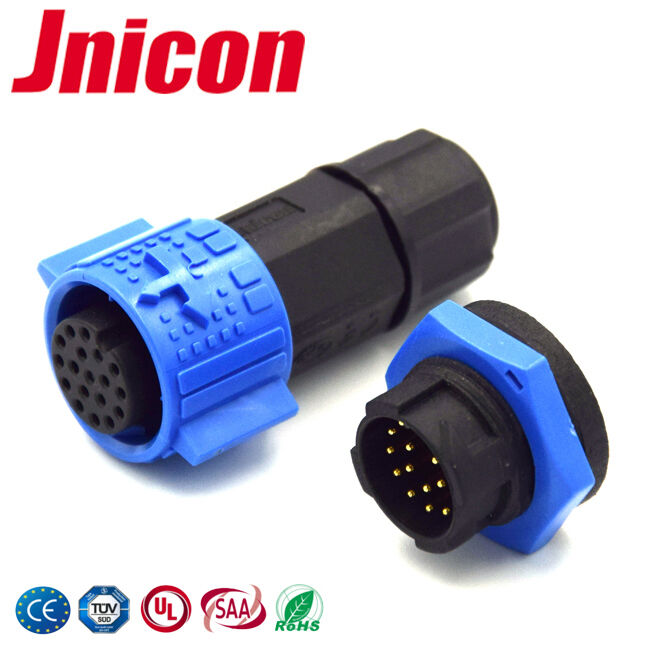

Name: IP67 12 Pin Plug And Socket M19 5A Low Voltage Waterproof 300 Volt Circular Connectors
Brand: Shenzhen Jnicon Technology Co., Ltd.
SKU: M19
Price: 2.20 USD
Availability: InStock

Home Products Waterproof Data Connector

IP67 12 Pin Plug And Socket M19 5A Low Voltage Waterproof 300 Volt Circular Connectors

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Jnicon
Certification:	UL,TUV,CE,ROHS,CQC
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	100 (10 Pairs of samples)
Price:	Negotiable
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3-5 working days
Supply Ability:	10000pcs/day

Contact Now

Detailed Product Description

Model Number:	M19 12pin Data Connector	Cable Range:	0.3-0.5mm2
Rated Current:	5 Amps	Flame-resistant Rating:	UL94-V0
Warranty:	5 Years	Material:	Nylon
Highlight:	IP67 12 Pin Plug Socket , M19 5A Waterproof Connector , 300V Circular Waterproof Connector

IP67 12 Pin Plug And Socket M19 5A Waterproof 300 Volt Circular Connectors

Product Features:

1. Push pull type waterproof connector with plug socket

2. IP67 protection level

3. Solder type assembly

4. Multicolor available, such as Blue,yellow,black

5. Power and data two in one

12pin waterproof data connectors not only could be used for led application, also can be a good option to industrial equipment, control box,automatic signal transmission etc.

Technical Data of 12 pin connector :

Connector color:	Black, blue, yellow
Waterproof level:	IP67
Cable specification:	0.3-0.5mm2
Cable diameter range:	4.5mm-11mm
Contact diameter*No.	Φ1.0-Φ2.4
Rated current (A):	5A
Operating voltage (AC.V.rms):	125V
Withstand voltage (AC.V)1min:	500V
Connector type:	Panel mount waterproof connector

Panel mount type waterproof connectors could be well installed via screw on PCB, plastic case, control box, easy to assemble and disassemble it. Dust cap is available to protect it when off working.

Reliability to 12 pin connector :

Contact resistance:	<5mΩ
Insulation resistance:	>500MΩ
Durability:	≥3000 mating and unmating cycles
Temperature rating:	-40°C~105°C
Connecting mode:	Solder type/screw terminal
Flame-resistance:	UL94-V0

High quality material to 12 pin connector:

Sealed against dust and fluid (IP67)

Vibration resistance, impact resistance, stretching resistance

Dust cover available

IP67 12 Pin Plug And Socket M19 5A Low Voltage Waterproof 300 Volt Circular Connectors
