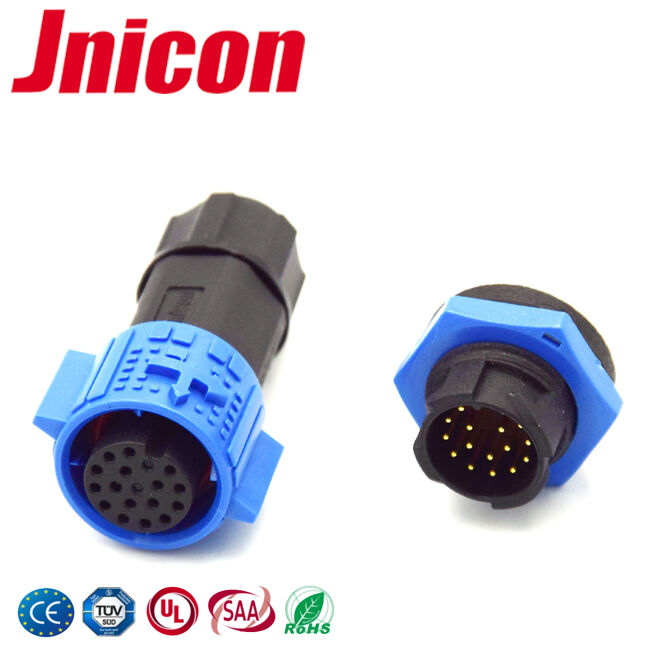

M19 Male Female Waterproof Connectors TUV Push Lock 18 Pin Data Connector 300V

Product Details:

Place of Origin:	China
Brand Name:	Jnicon
Certification:	UL,TUV,CE,ROHS,CQC
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	100 (10 Pairs of samples)
Price:	Negotiable
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3-5 working days
Supply Ability:	10000pcs/day

Contact Now

Detailed Product Description

Model Number:	M19 18pin Connector For Data	Rated Current:	5A
Cable Range:	0.3-0.5mm2	Warranty:	5 Years
Color:	Blue	Operating Temperature:	-40℃~+105℃
Highlight:	M19 waterproof 18 pin connector , TUV push lock data connector , 300V male female waterproof connector

M19 Male Female Waterproof Connectors TUV Push Lock 18 Pin Data Connector 300V

Product Description:

1. Push locking type waterproof connector

2. IP67 protection level

3. Solder cable assembly to your applications

4. Multicolor available, such as Blue,yellow,black

5. Multicores are available, 12pin,15pin,16pin or 18pin

18 pin waterproof data connectors not only could be used for led application, also can be a good option to industrial equipment, control box,automatic signal transmission,stage lighting equipment etc.

Technical Data:

Core No. :	18pin
Connector color:	Black, blue, yellow
Waterproof level:	IP67
Cable specification:	0.3-0.5mm2
Cable diameter range:	4.5mm-11mm
Contact diameter*No.	Φ1.0-Φ2.4
Rated current (A):	5A
Operating voltage (AC.V.rms):	125V
Withstand voltage (AC.V)1min:	500V

Reliability:

Contact resistance:	<5mΩ
Insulation resistance:	>500MΩ
Durability:	≥3000 mating and unmating cycles
Temperature rating:	-40°C~105°C
Connecting mode:	Solder type/screw terminal
Flame-resistance:	UL94-V0

High quality material:

Sealed against dust and fluid (IP67)

Vibration resistance, impact resistance, stretching resistance

Dust cover available

High quality material to ensure and improve your applications performance, 18 pin waterproof connectors is a good choice to data transmission no matter for equipment or lights fixtures.
