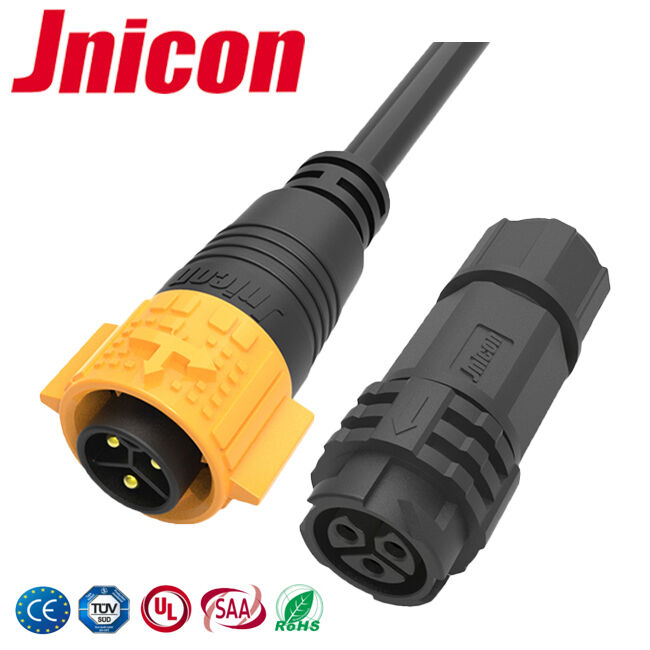

IP68 3 Pin 20A Male Female Connector ODM Push Lock Power 12AWG Max Connector

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Jnicon
Certification:	UL,TUV,CE,ROHS,CQC
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	100 (10 Pairs of samples)
Price:	Negotiable
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3-5 working days
Payment Terms:	L/C,, D/A, D/P, T/T, Western Union,
Supply Ability:	10000 sets/day

Contact Now

Detailed Product Description

Product Name:	M19 3pin Waterproof Power Connector	Rated Current:	20A/300V
Cable Diameter:	4.5-11mm	Cable Spec:	12AWG Max
Material:	PA66 And Brass Tin Plated	Operating Temperature:	-40℃~+105℃
Highlight:	IP68 3 Pin Power Connector , 20A Push Lock Male Female Connector , 12AWG Waterproof Male Female Connector

IP68 3 Pin 20A Male Female Connector ODM Push Lock Power Connector

M19 waterproof connector's features :

1. Advanced structure: Push locking

2. Multicore:2,3,4,5,6,7,8,9 to 32 pins are optional

3. Connection method: soldering(welding),screw terminal

4. Assembly: cable to cable /wire to wire,panel mount,male and female without cable,T shape.

5. Certifications: UL, TUV, CE,ROHS,CQC.

Specification of M19 outdoor waterproof connector

Model: M19 waterproof connector for outdoor application
Specifications:
Connecting mode:		Push locking waterproof connector
Core number:		3 pin
Connector type :		Assembly and Panel mount connector
Connector color:		Black, blue, yellow
Waterproof level:		IP67/IP68 waterproof connector
Cable specification:		20AWG-12AWG
Cable diameter range:		4.5mm-11mm
Contact diameter		Φ1.0-Φ2.4
Rated current (A):		20A
Operating voltage (AC.V.rms):		500V
Withstand voltage (AC.V)1min:		1500V
Contact resistance:		<5mΩ
Insulation resistance:		>500MΩ
Durability:		≥3000 mating and unmating cycles
Temperature rating:		-40°C~105°C
Connecting mode:		Solder type/screw terminal
Flame-resistance:		UL94-V0
Material:
Shell and insulated parts:		High performance engineering plastics
Contact pin:		Copper alloy(gold-plated)
Spring:		Stainless steel
Sealing:		Silica gel
Main characteristics:
Sealed against dust and fluid (IP67/IP68)
Vibration resistance, impact resistance, stretching resistance
Dust cover available
Application industries:
Stage equipment	The smart grid		LED lighting
Medical equipment	Battery		Automation
Solar energy equipment	Ship equipment		Agriculture
Electric power equipment	Vehicle equipment		Ebike/motorcycle
Communications equipment	Heavy machinery		Transportation

Dimension of M19 outdoor connectors
