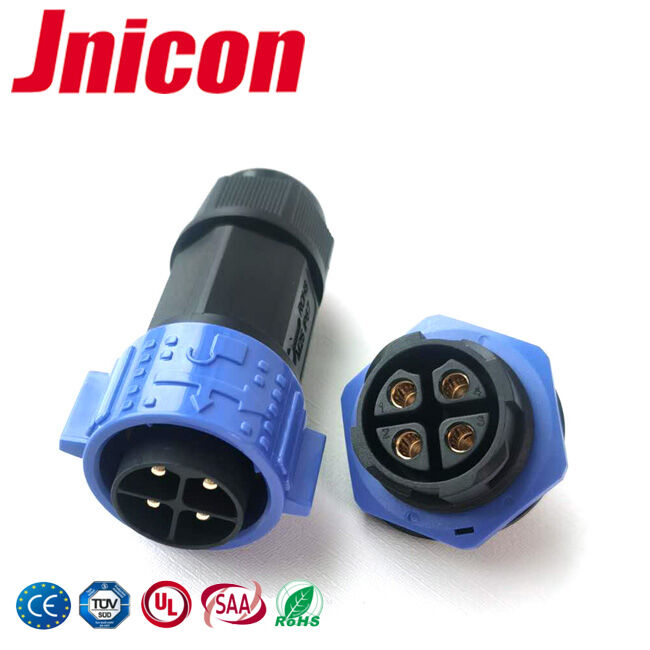

M25 500V Plastic PA66 Quick Lock Power Connector Wire To Board Connector Types

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Jnicon
Certification:	CE,TUV,UL,RoHS
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	100 (10 Pairs of samples)
Price:	Negotiable
Packaging Details:	High Quality export carton
Delivery Time:	3-6 working days
Payment Terms:	T/T,Paypal,L/C,Western Union
Supply Ability:	10000/days

Contact Now

Detailed Product Description

Pin:	4Pin Power	Protection Level:	IP67 Waterproof
Current Rating(A):	30A Max.	Material:	PA66 And Brass Tin Plated
Connection Way:	Self Locking Connector	Operating Voltage:	500V
Highlight:	M25 500V PA66 power connector , IP67 waterproof wire to board connector , quick lock power connector

4Pin M25 Waterproof Cable Connector ,Self Locking Waterproof Cable To Board Connectors

Description of 4Pin M25 Waterproof Cable Connector

M25 IP67 wateproof connector is one of best-selling series products made with PA66 plastic, to ensure the high stability and multi-core structures. They are one of the cost-effective series for multiple applications.

Main Feature of Waterproof Cable Connectors UK

Quick and easy installation. Push locking structure
Quality is our culture.100% test before shipment
One-stop production factory, strong R&D team,reliable QC team
Hardware and cable self-production
Mold making and inject molding
Short delivery time

Operation Parameters
Voltage Rating	600VAC max
Current Rating	50A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max.Cable Cross Section Area	0.5mm2 ~ 6.0mm2

Widely used for the belowed application:

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Advices for choosing a suitable connector

Confirm Current Rating and Number of Contacts
Confirm Assembly style
Confirm Cable Wire guage
Confirm Cable Length and Material.
