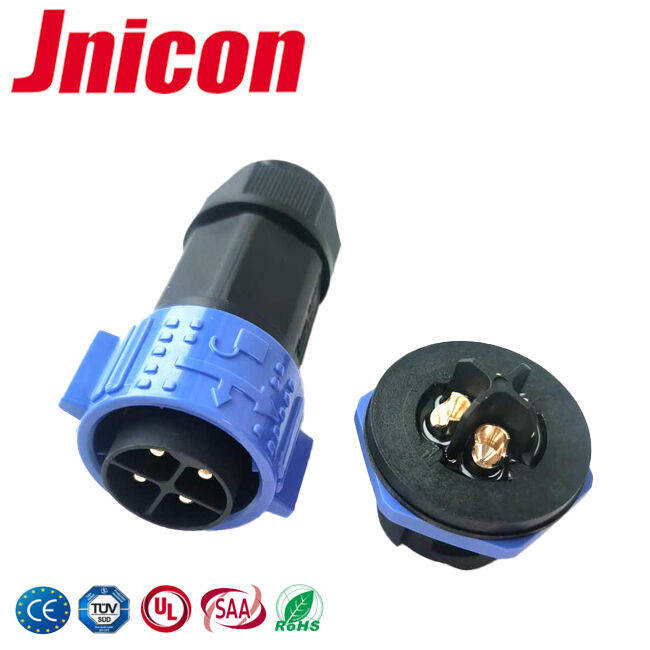

Name: -40°C ~ +105°C Waterproof IP67 Connector 4 Pin 30A Plastic Male Female Connector
Brand: Shenzhen Jnicon Technology Co., Ltd.
SKU: M25
Price: 2.20 USD
Availability: InStock

Home Products Waterproof LED Connectors

-40°C ~ +105°C Waterproof IP67 Connector 4 Pin 30A Plastic Male Female Connector

Product Details:

Place of Origin:	China
Brand Name:	Jnicon
Certification:	CE,TUV,UL,RoHS
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	100 (10 Pairs of samples)
Price:	Negotiable
Packaging Details:	High Quality export carton
Delivery Time:	3-6 working days
Payment Terms:	T/T,Paypal,L/C,Western Union
Supply Ability:	10000/days

Contact Now

Detailed Product Description

Protection Level:	IP67 Waterproof	Pin:	4Pin For Power
Current Rating(A):	30A Max.	Material:	PA66 And Brass Tin Plated
Connection Way:	Self Locking Connector	Operating Voltage:	500V
Highlight:	IP67 Waterproof 4 Pin Connector , 30A Male Female LED Connector , -40°C to 105°C Plastic Connector

4Pin M25 Waterproof Power Connector ,Self Locking Waterproof Circular Connectors UK

Description of 4Pin M25 Waterproof Circular Connector

M25 IP67 wateproof connector is one of best-selling series products made with PA66 plastic, to ensure the high stability and multi-core structures. They are one of the cost-effective series for multiple applications.

Main Feature of Waterproof Cable Connectors UK

Quick and easy installation. Push locking structure
Quality is our culture.100% test before shipment
One-stop production factory, strong R&D team,reliable QC team
Hardware and cable self-production
Mold making and inject molding
Short delivery time

Operation Parameters
Voltage Rating	600VAC max
Current Rating	50A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max.Cable Cross Section Area	0.5mm2 ~ 6.0mm2

Widely used for the belowed application:

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Advices for choosing a suitable connector

Confirm Current Rating and Number of Contacts
Confirm Assembly style
Confirm Cable Wire guage
Confirm Cable Length and Material.
