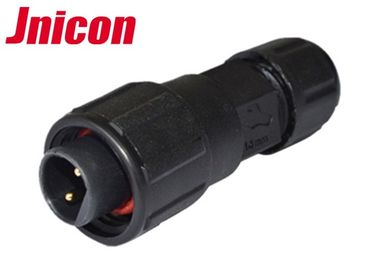

Plastic Waterproof Circular Connectors 300V 10A Copper Alloy Contact Pin

Plastic Waterproof Circular Connectors 300V 10A Copper Alloy Contact Pin

Plastic Waterproof Circular Connectors 300V 10A Copper Alloy Contact Pin

Product Details:

Place of Origin: Shenzhen China
Brand Name: Jnicon
Certification: TUV , UL , CE , CQC , CCC
Model Number: M16

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time: 3 ~ 5 days
Payment Terms: T/T , Paypal, L/C, Western Union, D/A, D/P, MoneyGram
Supply Ability: 10000 / day
Contact Now
Detailed Product Description
Connector Type: Power Color: Black
Contact Pin: Copper Alloy Rated Current: 10A
Operating Voltage: 300V Protection Level: IP68

Black Plastic Waterproof Circular Connector , Screw Lighting Electrical Connector



Product Features / Advantage



M16 2pin waterproof circular connector is widly used for outdoor lighting , like tunnel light , washing light , garden light , street light etc . more details  as following :



1. Screw type.
2. Colors are optional to be used in different environment.we have yellow,black,blue ,white.
3. High performance cover are optional to be used in different environment.
4. Pin : 2pin , 3pin , 4pin ...even more .
5. Rated current / voltage : 10 A / 300 V



Specification of 2Pin Waterproof Circular Connector



Number

2pin

Current Rating

10A

Voltage Rating

300V

Protect Level

IP68

Diameter Range

MAX φ 9mm

Operating Temperature

- 40℃ ~ 105 ℃

Cables Specification

0.5mm2 ~ 1.5mm2 (20 ~ 16 AWG)

Connector Type

Screw type

wiring

Soldering

Cable Length

Per your requirement



  • There are also many other type waterproof circular connector in ou company if the parameter can't meet your requirement above
  • Current rating : 20A  , 30A , 40A , 50A
  • Voltage rating : 500V
  • Cable specification : Max φ 16



Product / Dimension Show - M16 Screw Type 2Pin Male & Female Connector

Plastic Waterproof Circular Connectors 300V 10A Copper Alloy Contact Pin



Packing and Delivery



  • Packaging Details: 500pcs to a skin packing to a carton . Customized packing is welcomed, MOQ of printing customized box is 3000 pcs each model
  • Delivery Details: sample 2-4 working days, products in 7 days after payment.



FAQ



Q: Are you trading company or manufacturer ?

A: We are factory.


Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q: I can't find the product on your catalogue, can you make this product for me .

A: Our catalogue shows most of our products, but not all. So just let us know what product do you need, and how many do you want . If we do not have it , we can also design and make a new mould to produce it. For your reference, making a ordinary mould will take about 35-45days.


Q: Can you make customized products and customized packing?
A: Yes , we can provide samples. Normally, we provide 1-3pcs free samples for test or quality checking .But you have to pay for the shipping cost . If you need many items, or need more qty for each item,we will charge for the samples.
