Shenzhen Jnicon Technology Co., Ltd.
Professional Waterproof Connectors Manufacturer
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | Jnicon |
| Certification: | CE,TUV,UL,RoHS |
| Model Number: | M25 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1.Plastic bag;2.Carton;3.As per customer's requirements |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T,Paypal,L/C,Western Union |
| Supply Ability: | 10000/days |
| Product Name: | M19 Under Waterproof Connector | Connect Method: | Screw Locking |
|---|---|---|---|
| IP Level: | IP68 | Rated Current: | 20A/300V |
| Application: | For Underground, Underwater Power Connection | Cable Spec: | 18AWG-10AWG |
| High Light: | outdoor power cable connectors,waterproof outdoor lighting connectors,Screw Lock Outdoor Waterproof Connectors |
||

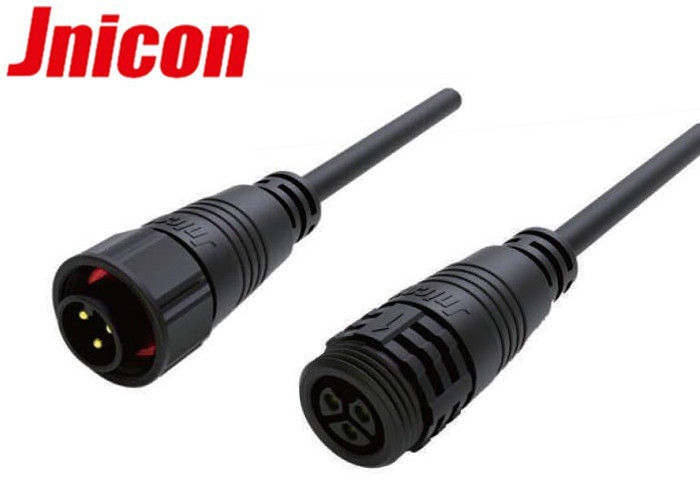

3 Pin IP68 Outdoor Waterproof Connector , Screw Locking Underwater Power Plug
Main Features
1. Screw locking connector could be used for underwater and underground or Marine applications.
2. Multicore: 2,3,4,5,6,7,8,9 and more.
3. Connection method: soldering(welding)
4. Dustproof cover available under off-working condition.
5. Certification: UL,TUV,RoHS,CQC,CE
Technical Specification
| Waterproof level: | IP68 |
| Cable specification: | 20AWG-12AWG |
| Cable diameter range: | 4.5mm-11mm |
| Contact diameter*No. | Φ1.0-Φ2.4 |
| Rated current (A): | 20A |
| Operating voltage (AC.V.rms): | 500V |
| Withstand voltage (AC.V)1min: | 1500V |
| Contact resistance: | <5mΩ |
| Insulation resistance: | >500MΩ |
Main characteristics:
| Sealed against dust and fluid (IP68) |
| Vibration resistance, impact resistance, stretching resistance |
| Dust cover available |
Application industries:
| Stage equipment | The smart grid | LED lighting |
| Medical equipment | Battery | Automation |
| Solar energy equipment | Ship equipment | Agriculture |
| Electric power equipment | Vehicle equipment | Ebike/motorcycle |
| Communications equipment | Heavy machinery | Transportation |
Product Benefits
1. Great suitable for Outdoor LED light, LED equipment, Telecommunication, Marin, grating, external wiring, CCTV, factory automation control, wireless bridge and other places need waterproof power extension use, even underwater or underground both could be well used.
2.With environmental protection material:high performance engineer plastic is good for environmental protection.
