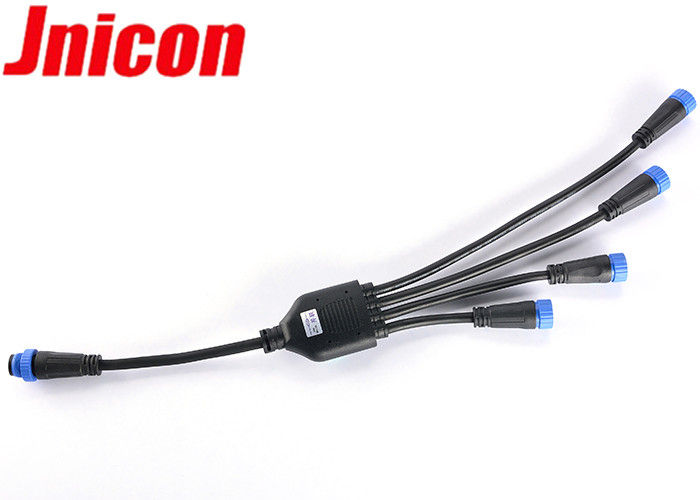

Y Shaped Outdoor Waterproof Connectors With 1 In 4 Out Female Connector

Y Shaped Outdoor Waterproof Connectors With 1 In 4 Out Female Connector

Y Shaped Outdoor Waterproof Connectors With 1 In 4 Out Female Connector

Product Details:

Place of Origin: China
Brand Name: Jnicon
Certification: CE,TUV,UL,RoHS
Model Number: M19

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time: 3-5 working days
Payment Terms: T/T,Paypal,L/C,Western Union
Supply Ability: 10000/days
Contact Now
Detailed Product Description
Product Model: Y Connector Connection Method: Screw Locking , Push Locking
IP Level: IP67/IP68 Rated Current: 20A/300V
Function: Outdoor Power Connection Cable Spec: 18AWG-10AWG(12mm Max)

IP68 Outdoor Waterproof Y Shaped Connector With 1 In 4 Out Female Connector



Features



1. Y shaped waterproof connectors

2. Multicore: 2,3,4 pin available

3. Connection method: push locking

4. Dustproof cover available under off-working condition.

5. Certification: UL,TUV,RoHS,CQC,CE

6. Multi-branches are options, such as 1 to 2, 1 to 3, 1 to 4 ... 1 to 8 .



Technical Spec



Connector Model: Y shaped waterproof connector
Waterproof level: IP68
Cable specification: 20AWG-12AWG
Cable diameter range: 4.5mm-12mm(18AWG-12AWG)
Core number: 2 pin,3pin,4pin
Rated current (A): 20A-10A
Operating voltage (AC.V.rms): 500V
Withstand voltage (AC.V)1min: 1500V
Contact resistance: <5mΩ
Insulation resistance: >500MΩ
Service Cable length could be customized



Product Benefits :



1. Overmolded Y connector could be a nice option for your DIY connector to outdoor or indoor electrical wire extension, such as land scape LED light, led strips, wall washer bar, Audio and video, Telecommunication, Marin, factory automation control, wireless bridge and other places need waterproof power extension use, even underwater or underground both could be well used.



2.Flexiable extension to different cable length and spec, fast to install all connections.



Main characteristics:



Sealed against dust and fluid (IP67/IP68)
Vibration resistance, impact resistance, stretching resistance
Dust cover to male and female are available



Application industries:



Stage equipment The smart grid LED lighting
Medical equipment Battery charging Automation
Solar energy  Ship equipment Agriculture
Electric power equipment Vehicles Ebike/motorcycle
Communications  Pool lights Transportation



Y Shaped Outdoor Waterproof Connectors With 1 In 4 Out Female Connector
