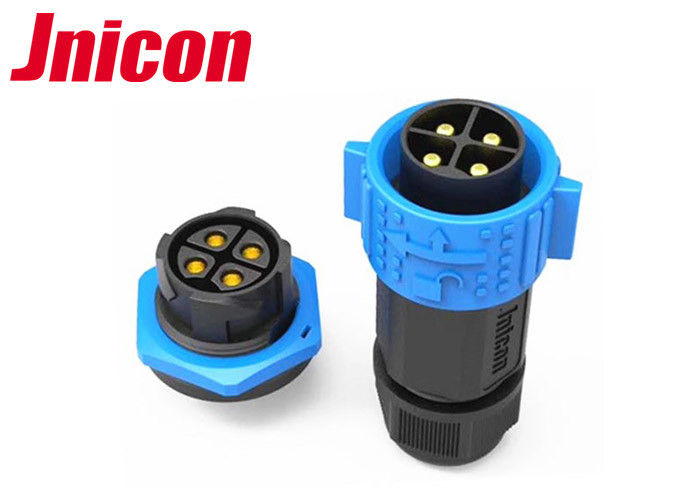

LED Waterproof Outdoor Lighting Connectors , IP68 Waterproof DC Connector

LED Waterproof Outdoor Lighting Connectors , IP68 Waterproof DC Connector

LED Waterproof Outdoor Lighting Connectors , IP68 Waterproof DC Connector

Product Details:

Place of Origin: China
Brand Name: Jnicon
Certification: UL/CE/TUV/CQC/RoHS
Model Number: Outdoor Waterproof Connectors

Payment & Shipping Terms:

Minimum Order Quantity: 1 pair
Price: Negotiable
Packaging Details: 1.Plastic bag; 2.Carton; 3.As per customer's requirement
Delivery Time: 3-5 working days
Payment Terms: L/C,T/T,Paypal,Western Union
Supply Ability: 10000pcs/day
Contact Now
Detailed Product Description
Brand: JNICON Pin: 4
Rated Current: 20A Waterproof Rating: IP67
Connecting Type: Over Molding Application: LED Lighting

Led Outdoor Lighting Outdoor Waterproof Connectors 2Pin 3Pin DC IP68 Connector



Product Features



1. IP67 waterproof rating for outdoor using
2. Quick-connect Self Locking design for convenient and easy DIY
3. Panel mount socket & Butt joint available
4. Soldering & Screw type terminals available
5. Accepted Max. Cable OD: 12 mm
6. Field installable, soldering or screw connection, crimpping connection available
7. We could help to attach cable in any length and process terminals if required
8. UL, TUV, CCC, CE, RoHS approved



Our Services



* Accepted Max. Cable OD: 9 mm
* Field installable, soldering or screw connection
* UL, TUV, CQC, CE, RoHS approved
* High quality with 12 months waranty
* Pin range: 2, 3, 4 , 5 , 6 , 7 , 8
* We could help to attach cable in any length and process terminals if required
* Customer's drawings and designs are welcome, as we have our own professional R&D team to provide
you various solutions



Product Parameter



Connector Outdoor waterproof connectors
2P 3P 4P 5P 6P 8PWaterproof Cable Connector
Wire 20~16Gauge,0.5-1.5MM²
Color Black/Blue/Yellow
Length Optional
Voltage Rating AC300V
Current Rating 1A~20A
Times Of Plug 500
Withstand Voltage 1.5KV
Temperature Rating —40~+105℃
Waterproof Level IP67
Max Cable OD 9mm
Pin Numbers 2-22 wires
Certifications CE/UL/TUV/ROHS
Application

Our products are widely used in LED lighting, Flexible strip outdoor display, electrical equipment, automation machines, electrical vehicle and etc...



Widely used M19 lock type Connector:
  Great suitable for Outdoor LED light, LED Display, LED Street Lamp lighting, Stage lighting, LED equipment, Communication Equipment, Power, Automotive, grating, external wiring, CCTV, factory automation control, wireless bridge and other places need waterproof joint use.


IP67 Waterproof connector plug:
  Moisture-proof and Dust-proof, never leave your precious wires exposed and have good protection on them,this outdoor electrical box is safe for home, garden or outdoor lighting.


Easy installation M19 cable connector wiring:
  Easy connection, Convenient install, DIY tools, and no need to pinch-off cable electrical plastic sets, just unscrew the ends of waterproof connector, connect the wire correctly: N for Neutral wire, G for Ground wire, L for live wire.





Product Dimention

LED Waterproof Outdoor Lighting Connectors , IP68 Waterproof DC Connector
