Shenzhen Jnicon Technology Co., Ltd.
Professional Waterproof Connectors Manufacturer
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | Jnicon |
| Certification: | TUV, UL, 3C, CE, ROHS, ISO90001 |
| Model Number: | Waterproof Circular Connectors |
| Minimum Order Quantity: | 100 (10 Pairs of samples) |
|---|---|
| Price: | negotiable |
| Packaging Details: | 1.plastic bag 2.carton 3.As per customer's requirement |
| Delivery Time: | 3-5 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pair/day |
| Product Type: | TUV Plastic 3 Pin Waterproof Circular Connector | Current Rating: | 10A |
|---|---|---|---|
| Application: | LED Display, LED Lighting, Electrical Equipment | Waterproof Degree: | IP68 |
| Contact Material: | Copper Alloy(gold-plate) | Pins: | 2/3/4/5 Pin Are Available |
| Highlight: | circular electrical connectors,circular plastic connectors,plastic ip68 round connector |
||

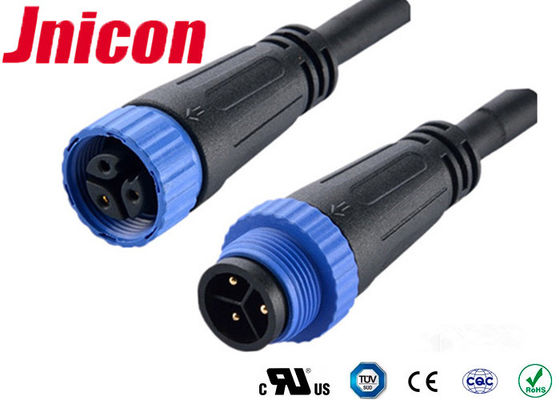

TUV Plastic 3 Pin Waterproof Circular Connector Male Female Power And Data IP68
Description of TUV Plastic 3 Pin Waterproof Circular Connector
1. Our waterproof circular connector have protection level: IP68.
2. Screw locking style,easy to assemble. It can effectively resist vibration and shock, and can prevent broken connection caused by pulling cables. It is absolutely reliable and convenient to plug in very limited space.
3. Current/ voltage rating is 10A/ 300V.
4. The max.cable diameter: 9.0 mm.
5. Your drawings and samples are warm welcomed since our professional R&D team can help to customize the items you want.
6. gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
The specifiction of 10A waterproof circular connector
| Number of contact | 2 pin/3 pin/4/pin/5 pin |
| Current rating | 10A |
| Voltage rating | 300V |
| Contact diameter*number | ∅1.5 |
| Withstanding voltage | 1500V |
| Cable gauge | 24-16AWG |
| Operating temperature | -40°C~+105°C |
| Material of shell, insulating parts | High performance engineering plastics |
| Material of copper needles | Copper alloy |
| Flame-resistance rating | UL94-V0 |
| Warranty | 12 months |
| Durability | 3000 times plug/unplug |
Detail picture
Contact Person: Ms. Carly Lu
Tel: +86 15986694303
