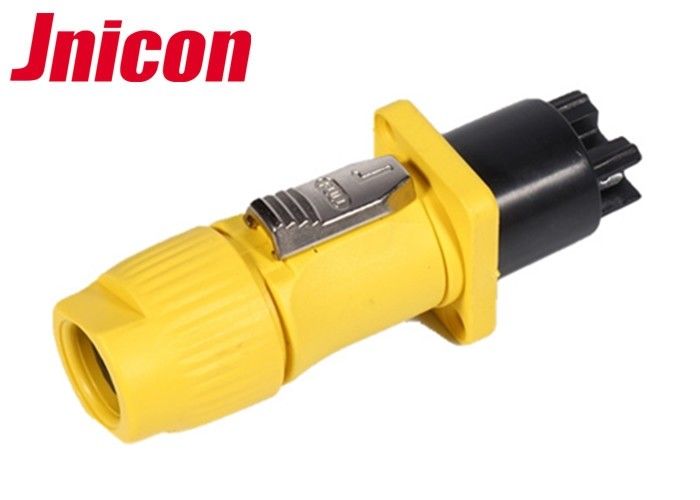

IP44 / IP65 Waterproof Electrical Plug Connectors Yellow And Black Shell

IP44 / IP65 Waterproof Electrical Plug Connectors Yellow And Black Shell

IP44 / IP65 Waterproof Electrical Plug Connectors Yellow And Black Shell

Product Details:

Place of Origin: Shenzhen China
Brand Name: Jnicon
Certification: UL , CE , CQC , ROHS
Model Number: Powercon Connector

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time: 3 - 5 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram , Paypal
Supply Ability: 10000 set / day
Contact Now
Detailed Product Description
Name: Plug And Socket Connector Material: Hihg-performance Engineering Plastics
IP Rating: IP44 / IP65 Connecting Mode: Plug / Unplug
Color: Yellow Warranty: 5 Years

Electrical Adapter Waterproof Plug Connectors , Yellow And Black Shell Connector



Production Description



1. Powercon waterproof plug connectors usually apply in  indoor / outdoor screen .

2. Plug and socket waterproof connector

3. Powercon male and female waterproof connector

4. Screw terminal waterproof connector



Feature / Advantage / Application



  • For powercon waterproof plug connector , there are 2pin , 3pin , 4pin connector
  • People usually use 3pin powercon connector for power transmission in indoor / outdoor led display
  • For color , blue and gray are wildly used in the world , and yellow , black are optional . you can have the one per your requirement .
  • For powercon male to female waterproof connector , we can connec with cable if you want
  • Cable specification : 2.5mm2  /  14 AWG
  • Connect with cable by crimping .



Datasheet / Parameter of Connector





Name 3Pin powercon plug connector
Number of contacts 3
Operating current/voltage 20A 500V
Contact diameter X number φ2.0
Withstanding voltage 2500V
Protection level IP44/IP65
Cable specification 2.5mm2
Diameter range MAXφ12mm



Operating temperature -25℃ - 80℃
Connecting mode Self- Lock
Shell , insulating parts PA66
Material of copper needles Copper alloy
Flame - resistant rating UL94-V0



Color of connector Yellow and black
Certification UL , CQC , CE ,ROHS
Cable Rubber / pvc / nylon
Length of cable Per your requirement
Wiring Screw terminal
Application LED display / power
Connector Plug and socket
Warranty 5 years



























Product Show - Powercon Plug and Socket



IP44 / IP65 Waterproof Electrical Plug Connectors Yellow And Black Shell



Our Service



  • Deal with the inquiry in 24 hours
  • Delivery time about 3 - 5 days
  • We accept  customization good whether it is connector , cable or package
  • Other special requirement , just contact me
  • Our engineering can provide the complete solution according to your requirement
  • Warranty : 5 years
