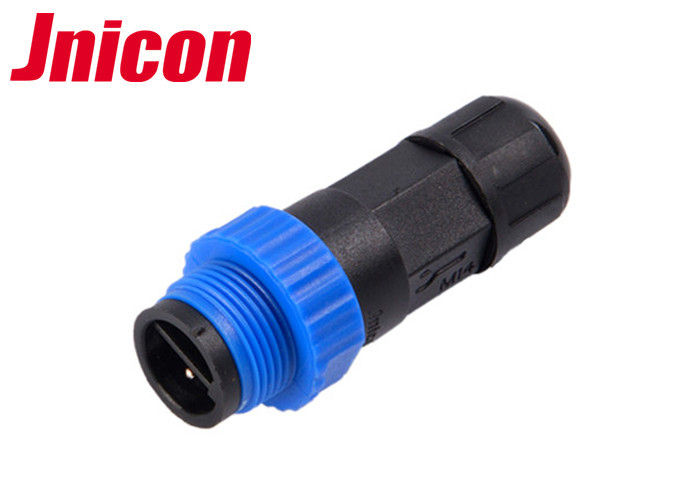

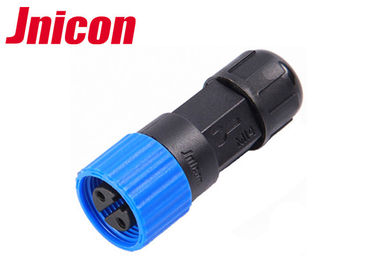

M15 IP68 Waterproof Plug Connectors , Outdoor Plug Connector High Speed Transmission

M15 IP68 Waterproof Plug Connectors , Outdoor Plug Connector High Speed Transmission

    • M15 IP68 Waterproof Plug Connectors , Outdoor Plug Connector High Speed Transmission
    • M15 IP68 Waterproof Plug Connectors , Outdoor Plug Connector High Speed Transmission
  • M15 IP68 Waterproof Plug Connectors , Outdoor Plug Connector High Speed Transmission

    Product Details:

    Place of Origin: China
    Brand Name: Jnicon
    Certification: UL/CE/TUV/CQC/RoHS
    Model Number: Waterproof Plug Connectors

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pair
    Price: Negotiable
    Packaging Details: 1.Plastic bag; 2.Carton; 3.As per customer's requirement
    Delivery Time: 3-5 working days
    Payment Terms: L/C,T/T,Paypal,Western Union
    Supply Ability: 10000pcs/day
    Contact Now
    Detailed Product Description
    Product Name: Waterproof Plug Connectors Application: Outdoor Lighting
    Rated Current: 10A Color: BlUE
    Contact Pin: 4 MOQ: 1 Pair

    High Speed Transmission M15 IP68 Waterproof Plug Connector For Outdoor Lighting



    Waterproof Plug Connector Features



    1. Water Plug Connectors

    2. 10A Max , IP68 protection level

    3. 2-8 pin available

    4. Approved by UL,CE,TUV and RoHS

    5.Screw locking structure

    6. Long service life & easy to assemble



    Jnicon Services



    1. Packaging: Package will do after several discussions with you.
    2. Best price: The products are directly from our factory. So it saves a lot secondary cost.
    3. Good quality: The MP only will start after you confirm the samples and the MP products will do 100% inspection before shipping.
    4. OEM accepted: Please send us your design and other important information. OEM are always welcome.



    Waterproof Plug Connector Parameters



    Cable specification: 0.5mm2~ 1.5mm2 /20~16 AWG
    Diameter range: Φ4mm ~ Φ9mm
    Contact diameter×Qty: Φ1.5×3
    Current rating(A): 10A
    Operating voltage(AC.V.rms): 500V
    Withstand voltage(AC.V)1min: 2500V
    Contact resistance: <3mΩ
    Insulation resistance: >500MΩ
    Durability: ≥500 mating &unmating cycles
    Temperature rating: -40°C~80°C



    Material:
    Shell &insulated parts: High performance engineering plastics
    Hardware metal: Zinc alloy(pearl hard chromium)
    Contact pin: Copper alloy(gold-plated)
    Spring: Stainless steel
    Sealing: Silica gel



    How to buy the Waterproof connector



    * Confirm the Cable Materials;

    * Confirm the rated current;

    * Confirm the Core Number and Core Diameter

    * Confirm the Cable Length;
