Shenzhen Jnicon Technology Co., Ltd.
Professional Waterproof Connectors Manufacturer
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | Jnicon |
| Certification: | CE,TUV,UL,RoHS |
| Model Number: | M19 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | High Quality export carton |
| Delivery Time: | 3 days |
| Payment Terms: | T/T,Paypal,L/C,Western Union |
| Supply Ability: | 10000/days |
| Product Name: | T Shaped Waterproof Connector | Rated Current: | 20A Max |
|---|---|---|---|
| Cable Spec: | 20AWG-12AWG | Cable Diameter: | 12mm Max |
| Core No.: | 2,3,4 And 5 Cores | Waterproof Level: | IP67 |
| High Light: | watertight power connectors,waterproof power plug,T Shaped Waterproof Power Cable Connectors |
||

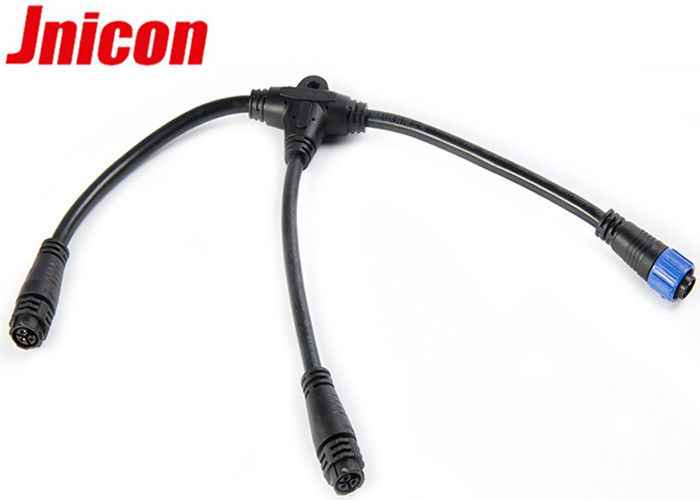

Outdoor T Shaped Waterproof Power Cable Connector With 2 Female And 1 Male
Details:
M19 3pin T type waterproof connector is a popupar power extension cable, which could be widely used for led ligthing, automatic, industrial equipment etc, main features as below :
1. Multicore are optional, such as 2 pin,3pin,4 pin and 5 pin.
2. Connection method: soldering(welding)
3. Connector type: cable to cable
4. Certification: UL, TUV, RoHs, CQC,CE
5. Max current: 20A/300V
6. IP67 protection level
7. Gender: male and female
8. Connection mode: push pull locking
Technical Specification:
| Waterproof level: | IP67 |
| Cable specification: | 20AWG-12AWG |
| Cable diameter range: | 4.5mm-12mm |
| Contact diameter*No. | Φ1.0-Φ2.4 |
| Rated current (A): | 20A |
| Operating voltage (AC.V.rms): | 500V |
| Withstand voltage (AC.V)1min: | 1500V |
Application & benefits of waterproof power connector:
1. Great suitable for Outdoor LED light, LED equipment, grating, external wiring, CCTV, factory automation control, wireless bridge and other places need waterproof power extension use.
2. Moisture-proof and Dust-proof waterproof connector, never leave your precious wires exposed and have a good protection on them.
3. Easy connection, convenient install, DIY tools, and no need to pinch-off cable electrical plastic sets, just unscrew the ends of waterproof connector, connect the wire correctly: N for Neutral wire, G for Ground wire, L for live wire.
| Contact resistance: | <5mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥3000 mating and unmating cycles |
| Temperature rating: | -40°C~105°C |
| Connecting mode: | Solder type/screw terminal |
| Flame-resistance: | UL94-V0 |
Popular Applications
| Stage equipment | The smart grid | LED lighting |
| Medical equipment | Battery | Automation |
| Solar energy equipment | Ship equipment | Agriculture |
| Electric power equipment | Vehicle equipment | Ebike/motorcycle |
| Communications equipment | Heavy machinery | Transportation |
