Shenzhen Jnicon Technology Co., Ltd.
Professional Waterproof Connectors Manufacturer
|Place of Origin:||China|
|Certification:||TUV, UL, 3C, CE, ROHS, ISO90001|
|Model Number:||Waterproof Power Connector|
|Minimum Order Quantity:||1 pair|
|Packaging Details:||1.plastic bag 2.carton 3.As per customer's requirement|
|Delivery Time:||3-5 days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||10000 pair/day|
|Product Name:||3 Pin Plug With Socket Waterproof Power Connector||Current Rating:||10 A|
|Cable Gauge:||20-18 AWG||Contact Diameter:||∅ 1.5 Mm/number|
|Material:||High Performance Engineering Plastics||Operation Temperature:||-40℃~80℃|
waterproof power plug,
circular power connector,
Push Locking Industrial Power Connectors

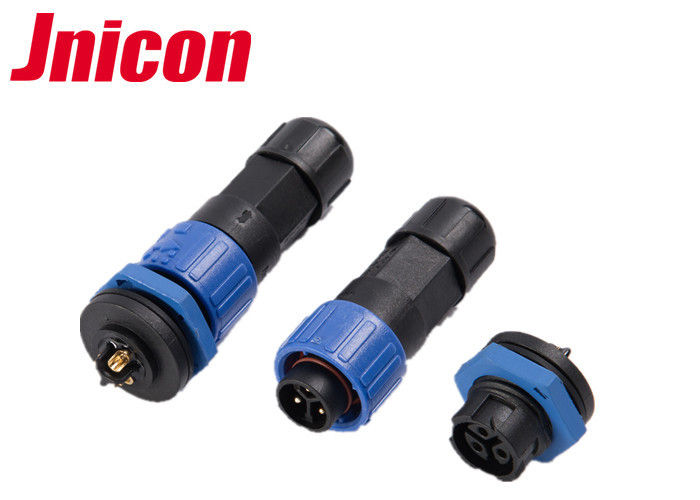

3 Pin Plug With Socket Waterproof Power Connector Push Locking 10A Led Screen
More details of 3 Pin Plug With Socket Waterproof power connector:
• the current/ voltage of waterproof power connector are 10A/300V. the withstanding voltage is 1500V AC.
• High current application safety and stable wire. 20-18 AWG wire for 3 pin waterproof power connector plug socket.
• 2-8 pins are available and for varies industrial demands.
• Plug/unplug locking style and push locking,easy to assemble.
The specifiction of 3 pin waterproof power connector
|Designation||3 pin male female waterproof power connector|
|1. Electrical characteristics|
|1A||Contact Resistance||10mΩ max.|
|1B||Insulation Resistance||10MΩ min.|
|1C||Withstand Voltage||1500V AC There shall be no breakdown.|
|2A||Mating/Unmating force||Mating & Unmating Force: 10~30N Test data:22N,23N,25N,26N,23N|
|2B||Life test||Mating & Unmating 500 cycles|
|3A||Contact Plating||1u" gold plating|
|3B||Contact material||Brass (C3604)|
|4B||Operation temperature range:||-30℃~+80℃|
|4C||Preservative temperature range:||-40℃~+85℃|
• gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
• The waterproof rating is IP67(plug locking) or IP68(screw locking).
The copper needles of the connector is adopted gold-plated technology,which can resist corrosion and suitable for high/low temperature, current transmission is more stable and safety.
Your drawings and samples are warm welcomed since our professional R&D team can help to customize the items you want.
3 pin waterproof power connectors could be widely used in indoor & outdoor led lighting, LED screen, audio visual equipment, industrial and testing equipment, electricl power connection, landscape lights,underwater lights,equipments etc.
It can effectively resist vibration and shock, and can prevent broken connection caused by pulling cables. It is absolutely reliable and convenient to plug in very limited space.
Product detail picture
