Electrical Home Waterproof Audio Connector High Durability PA66 / Plastic Housing

Electrical Home Waterproof Audio Connector High Durability PA66 / Plastic Housing

  • Electrical Home Waterproof Audio Connector High Durability PA66 / Plastic Housing
Electrical Home Waterproof Audio Connector High Durability PA66 / Plastic Housing
Product Details:
Place of Origin: Shenzhen China
Brand Name: Jnicon
Certification: UL , CE , CQC , ROHS ,TUV
Model Number: M19
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time: 3 - 5 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram Paypal
Supply Ability: 10000 pcs / day
Contact Now
Detailed Product Description
Name: Male And Female Power Connector Contact Plating: Gold Plating
Contact: Brass Housing: PA66 / Plastic
Gender: Male And Female Flammability: UL94V - 0
High Light:

watertight power connectors

,

waterproof power plug

,

PA66 Waterproof Audio Connector

Male And Female Cable Waterproof Power Connector Electrical Home Audio Adapter



Description of Waterproof Power Connectors



  1. For waterproof power connector , we also call it waterproof electrical connector .
  2. As the picture show , there are 2 part of connector : male and female connector , can be push lock assembly field connector or molded with cable connector .
  3. Method of connector connect with cable by soldering ( it can also be the screw terminal connector )
  4. there also many another name of waterproof power connectors . like waterproof circular connector , waterproof aviation connector , waterproof plug and socket connector , waterproof cable connector , waterproof wire connector etc .



Feature / Advantage of Waterproof Power Connectors

  1. Most connector approved by CE , UL , TUV , CQC , ROHS etc , the quality of waterproof power  connector is great and competitive in the market .
  2. As the original manufacturer , we can provide the best price for all the customer .
  3. For connector color , usually in black , but the yellow , blue  and gray in lock - ring is optional . you can choose what you want .
  4. we have a professional shipping agent , always pay attention to the transportation of good .
  5. Different cable size and length are available , wecome to do customization . We will confirm the information with customer .

Application of Connecor



For application of M19 connector , mainly apply in high current equipment , like lamp requiring high current , automotive charging , new energy , automation equipment , marine electronis , armarium , security and protection etc .



Datasheet / Specification / Parameter



Designation : M19 3Pin Connector
Item Specification
1 .Electrical characteristics
Contact Resistance 10mΩ max.
Insulation Resistance 10MΩ min.
Withstand Voltage 1500V AC There shall be no breakdown.
Rating / Current and Voltage 20A / 300V



2. Mechanical
Mating/Unmating force Mating & Unmating Force: 10~30N
Life test Mating & Unmating 500 cycles
3. Material
Contact Plating gold plating
Contact Brass / Copper alloy
Housing High - performance engineering plastic
4. Environmental
Flammability UL 94V-0
Operation temperature range -40 ℃ - + 105 ℃
Preservative temperature range -40℃~+85℃

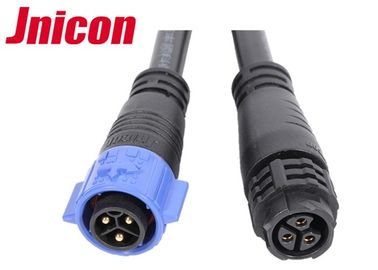

Picture / Photo  Show - 5 Pin Waterproof Power Connectors



Push lock 3pin male molded with cable connector

Electrical Home Waterproof Audio Connector High Durability PA66 / Plastic Housing 0

Push lock 3pole female molded with cable connector

Electrical Home Waterproof Audio Connector High Durability PA66 / Plastic Housing 1







FAQ



(1) I am interested in your product .

  1. Confirm the current and voltage first
  2. Confirm the socket , and the cable specification and cable OD
  3. Confirm the method of connecting cable , if the soldering is ok for you
  4. If you want the screw terminal , we have other corresponding connector . Just contact me , I will send you the corresponding information

(2) Can you provide the samples ?

  1. Yes , we can provide 1-3 set free samples for quality test , but the shipping cost should be paid
  2. We can also post it to your shipping agent in China if it's convenient for you .

(3) Can I pay the payment by RMB ?

  1. Sure , we accept RMB as the payment currency
