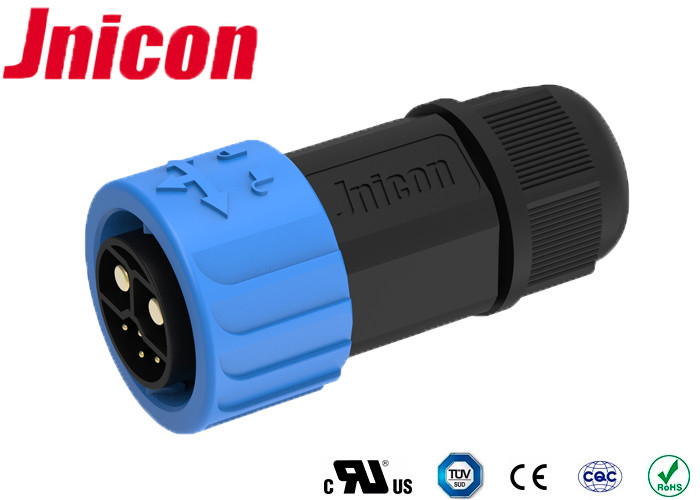

Power 50A Waterproof Battery Connector Electrical Quick Connect Male Female

Power 50A Waterproof Battery Connector Electrical Quick Connect Male Female

  • Power 50A Waterproof Battery Connector Electrical Quick Connect Male Female
Power 50A Waterproof Battery Connector Electrical Quick Connect Male Female
Product Details:
Place of Origin: Shenzhen,China
Brand Name: Jnicon
Certification: TUV,UL,CE,CQC
Model Number: M23
Payment & Shipping Terms:
Minimum Order Quantity: 1 pair
Price: Negotiable
Packaging Details: 1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time: 3~5 working days
Payment Terms: T/T, Western Union, , D/P, D/A, L/C, MoneyGram
Supply Ability: 10000 sets / Day
Contact Now
Detailed Product Description
Voltage Rated: 300V IP Rated: IP67
Current Rating: 50A Contact Pin: 8Pin
Connecting Model: Push Lock Color: Blue/Black/yellow
High Light:

50A Waterproof Battery Connector

,

M23 Waterproof Battery Connector

,

Push Lock waterproof battery cable connector

Electrical Quick Connect Male Female Power 50A Waterproof Battery Connector



Quick Details of Waterproof Battery Connector



Push locking waterproof connector IP67 is the main feacture of Jnicon M23 model.

Its take only a few seconds to connect the male female connector, thanks to its advanced structure .

it is widely used in many application.

If your products is E-Scooter, this model connector would help you a perfect and most advanced connection.



Features Of M23 Waterproof Connector



  • 2 power supply 50A max., 5IN signal 1pin grounding
  • IP67 rating
  • Voltage rating: 300V
  • Cable Range: 3~11mm
  • UL, TUV, CB, CCC, CE, RoHS approved
  • Mating cycle: 5000 times

Main characteristics Of Waterproof Power Connector



  • Sealed against dust and fluid (IP67)
  • power connector waterproof
  • Vibration resistance,impact resistance,stretching resistance
  • socket with cover
  • Cable assembly support
  • Customized cable size and length



Application of 8 Pin Panel Mount connector



  • Lithium-Ion Systems
  • Communications Application
  • product coding machines
  • inventory product coding
  • inkjet systems
  • Solar System
  • industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic&pathology equipment
  • Communications equipment
  • Heavy machinery



Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone



Operation Parameters
Voltage Rating 500VAC max
Min Wire Size OD 3.0mm ~ 6.5mm
Max Wire Size OD 6.5mm ~ 10mm
Max.Cable Cross Section Area 0.3mm2 ~ 2.5mm2



 FAQ



1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.

2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and shipping way

3. Q: How to contact with you?
A: Please give us email,we have worked for this industry more than 10 years,So we can catch your problem,and solve it in a short time.if you have any question please feel free to let us know.
