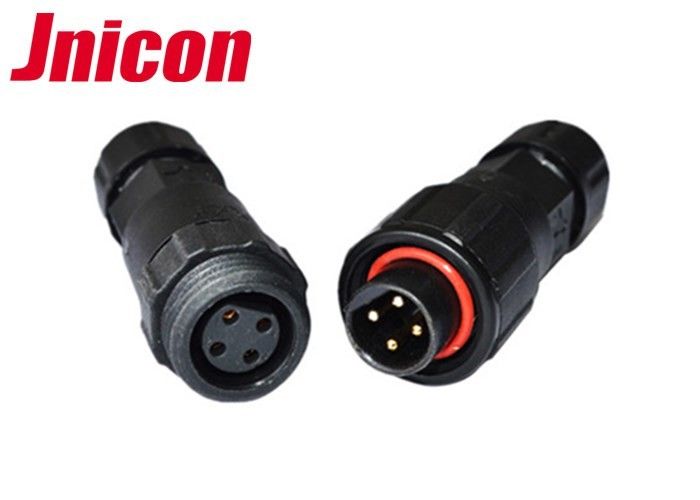

300V 10A Waterproof Small Circular Connectors M16 Sealed Against Dust And Fluid

300V 10A Waterproof Small Circular Connectors M16 Sealed Against Dust And Fluid

  • 300V 10A Waterproof Small Circular Connectors M16 Sealed Against Dust And Fluid
300V 10A Waterproof Small Circular Connectors M16 Sealed Against Dust And Fluid
Product Details:
Place of Origin: Shenzhen,China
Brand Name: Jnicon
Certification: TUV,UL,CE,CCC
Model Number: M16
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: 1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time: 3~5 working days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10000 sets/Day
Contact Now
Detailed Product Description
Name: Small Circular Connectors Color: Black Blue
Contact Pin: 3Pin Material: PA66
Protection Level: IP68 Feature: Waterproof
High Light:

M16 Sealed Waterproof Circular Connectors

,

Small Circular Connectors 300V 10A

,

PA66 Small Circular Connectors

10A 300V Small Waterproof Circular Connectors , M16 Waterproof Connector Plug



Description of M16 Waterproof Connector Plug

1) Advanced structure: Self-locking

2) Mutiple pin:2,3,4,5,6,7,8,9 to 22 pins are optional

3) Contact pin: Screw terminal and soldering terminal available

4) Assembly: wire to wire type(no cable),wire to wire by overmolding, wire to board

5) Colours:Black,blue,white and yellow color supported

6) Cable length:Different cable length could be customized





Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone



M16 3pin male plug female socket is a good connection model, widely used in LED lighting, especially in outdoor application, even underwater.



Application industries

  • Communications Application
  • product coding machines
  • inventory product coding
  • inkjet systems
  • Solar System
  • industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic&pathology equipment
  • Communications equipment
  • Heavy machinery



Operation Parameters
Voltage Rating 300VAC max
Current Rating 10A max
Min Wire Size OD 3.0mm ~ 5.0mm
Max Wire Size OD 6.5mm ~ 9.0mm
Max.Cable Cross Section Area 0.5mm2 ~ 1.5mm2



Our Advantages

1. 100% high quality, all failed parts get free warranty within 30 days after received.



2. Accept 10 years warranty upon customer requirement.



3. Repairs parts are available within 10years; we will inform the EOL products to you from time to time



4. Free LOGO on the surface of over-molded connectors can be provided upon customer requirement.



5. Unique designed package for you can be provided upon customer requirement.



6. Special feature and service can be provided upon requirement.





FAQ



1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.

2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and shipping way

3. Q: How to contact with you?
A: Please give us email,we have worked for this industry more than 10 years,So we can catch your problem,and solve it in a short time.if you have any question please feel free to let us know.
