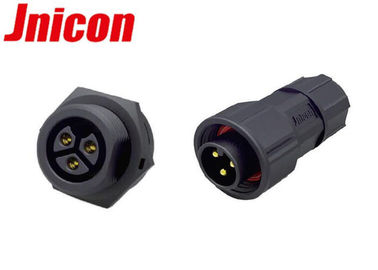

300V 40A IP67 Round Electrical Connectors M16 3 Conductor UL Approved

300V 40A IP67 Round Electrical Connectors M16 3 Conductor UL Approved

  • 300V 40A IP67 Round Electrical Connectors M16 3 Conductor UL Approved
300V 40A IP67 Round Electrical Connectors M16 3 Conductor UL Approved
Product Details:
Place of Origin: China
Brand Name: Jnicon
Certification: UL/CE/TUV/CQC/RoHS
Model Number: Waterproof Circular Connectors
Payment & Shipping Terms:
Minimum Order Quantity: 1 pair
Price: Negotiable
Packaging Details: 1.Plastic bag; 2.Carton; 3.As per customer's requirement
Delivery Time: 3-5 working days
Payment Terms: L/C,T/T,Paypal,Western Union
Supply Ability: 10000pcs/day
Contact Now
Detailed Product Description
Waterproof Level: IP67 Function: LED Lighting
Wire OD: 9.0mm Item Name: Waterproof Round Connectors
Rated Current: 40A Rated Voltage: 300Volt
High Light:

UL Approved Waterproof Round Connectors


IP67 Circular Electrical Connectors


300V 40A M16 Circular Connector

M16 3 Conductor UL Approved Waterproof Circular Connectors IP67 Round Plug Outdoor


Product Description


1: 2/3/4 /5/6/8/12/17 Poles available
2: A B D X S T Coded
3: 360° EMC Shielded or unshielded
4: Over-molding type, straight or right angled version
5: IP67/IP68/IP69K in locked condition
6: Cable length customized, PUR/PVC cable jacket


Feature Of Waterproof Circular Connectors

1. Safe use in the field, thanks to a high degree of protection,high tensile strength, abrasion and notch resistance
2. Flexible: connectors for on-site assembly,extremely high winding and unwinding strength
3. Soldering connection: proven connection technology for a large selection of different conductors
4. M8 extension cable or Flying leads(open cable ends),with good oil resistance/ chemical resistance
5. High temperature 260 degree ,solder reflowing


Product Parameter


Curret Rating 40A
Voltage rating 300V AC
Times of plug/unplug Above 500 times
Cable OD Rating OD≤16mm
Cable Type PVC, PU, Rubber, Silicon
Shell material Flame-resistant /anti-UV nylon (PA66)RL94V-0
Material of contact pin



Our Advantages

Waterproof Connector is simply disassembled and assembled by locking the tail nut, so that the connector and the cable form a perfect fit, not easy to fall off, and its waterproof effect can achieve to IP67.

● good performance: use standard super five pure copper four stranded double wire and crystal head

● easy connection: no welding work, no installation tools, the standard crystal head can be directly inserted, can achieve rapid installation and use.

● waterproof and dustproof meet the requirements of IP67 standard.

● threaded connection, safe and reliable, impact, vibration, tensile

● anti-electromagnetic interference protection

●since the plug and socket do not need to break or interrupt any of the original wiring structure, there is no signal attenuation.

● miniaturization, saving installation space features

● convert existing Ethernet connectors into dust-proof, waterproof, fast connection/separation, and efficient cable assembly for normal operation and use in harsh environments.


Product Dimention


300V 40A IP67 Round Electrical Connectors M16 3 Conductor UL Approved 0
