Shenzhen Jnicon Technology Co., Ltd.
Professional Waterproof Connectors Manufacturer
|Place of Origin:||Shenzhen,China|
|Minimum Order Quantity:||1 pair|
|Packaging Details:||1.Plastic bag;2.Carton;3.As per customer's requirements|
|Delivery Time:||3~5 working days|
|Payment Terms:||T/T, Western Union, , D/P, D/A, L/C, MoneyGram|
|Supply Ability:||10000 sets / Day|
|Connecting Model:||Push Lock||IP Rated:||IP67|
|Voltage Rated:||300Volt||Current Rating:||50A|

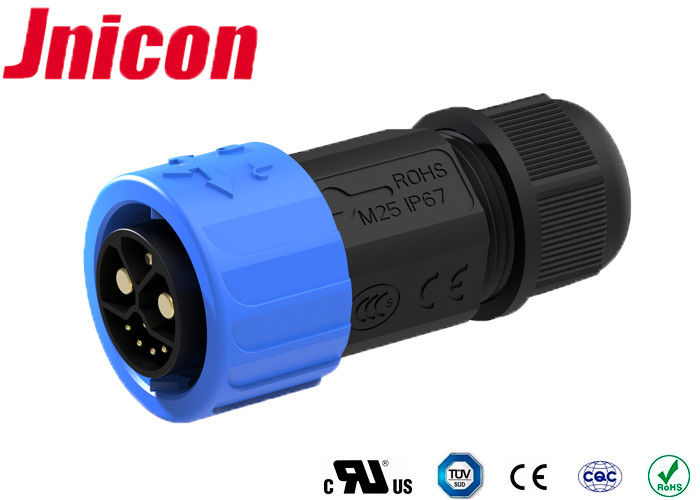

50A Waterproof Power Connector,
Quick Lock IP67 Waterproof Connector,
Lithium Battery IP67 Waterproof Connector
Quick Details of Lithium Battery Connector
1) Advanced structure: Self-locking
2) Mutiple pin:2,3,4,5,6,7,8,9 to 22 pins are optional
3) Contact pin: Screw terminal and soldering terminal available
4) Assembly: wire to wire type(no cable),wire to wire by overmolding, wire to board
5) Colours:Black,blue,white and yellow color supported
6) Cable length:Different cable length could be customized
Main characteristics Of Waterproof Power Connector
Application of 8 Pin Panel Mount connector
Features Of M23 Waterproof Connector
1. Safe use in the field, thanks to a high degree of protection,high tensile strength, abrasion and notch resistance
2. Flexible: connectors for on-site assembly,extremely high winding and unwinding strength
3. Soldering connection: proven connection technology for a large selection of different conductors
4. M8 extension cable or Flying leads(open cable ends),with good oil resistance/ chemical resistance
5. High temperature 260 degree ,solder reflowing
6.90 degree angled or straight(180 degree) overmolded M8 connector with PUR or PVC cable
7. Cable jacket with different colors,grey,black,orange,yellow,blue,overmolded color can be customized.
|Contact Resistance||10 mΩ max|
|Insulation Structure||500 MΩ at 500VDC|
|Operating Temperature||-40°C ~ +105°C|
|IP Class||IP67 (1m / 30min)|
|Contact/Terminal Material||Gold Plated Brass|
|Voltage Rating||500VAC max|
|Min Wire Size OD||3.0mm ~ 6.5mm|
|Max Wire Size OD||6.5mm ~ 10mm|
|Max.Cable Cross Section Area||0.3mm2 ~ 2.5mm2|
1. 100% high quality, all failed parts get free warranty within 30 days after received.
2. Accept 10 years warranty upon customer requirement.
3. Repairs parts are available within 10years; we will inform the EOL products to you from time to time
4. Free LOGO on the surface of over-molded connectors can be provided upon customer requirement.
5. Unique designed package for you can be provided upon customer requirement.
1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and shipping way
3. Q: How to contact with you?
A: Please give us email,we have worked for this industry more than 10 years,So we can catch your problem,and solve it in a short time.if you have any question please feel free to let us know.
