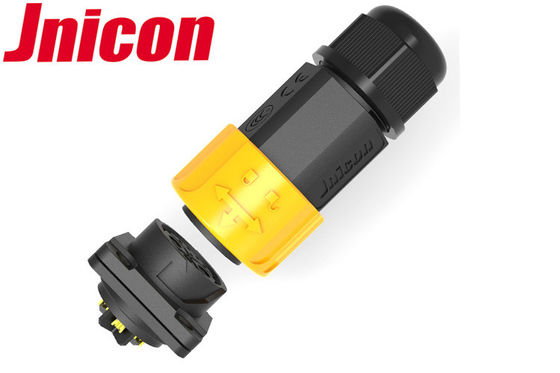

Solder Wire IP67 Circular Power Connector 20A 300V With Male And Female Plug

Solder Wire IP67 Circular Power Connector 20A 300V With Male And Female Plug

  • Solder Wire IP67 Circular Power Connector 20A 300V With Male And Female Plug
Solder Wire IP67 Circular Power Connector 20A 300V With Male And Female Plug
Product Details:
Place of Origin: Shenzhen China
Brand Name: Jnicon
Certification: UL,TUV,CE,ROHS,CQC
Model Number: M19
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time: 3-5 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000/days
Contact Now
Detailed Product Description
Model Number: M19 Waterproof Power Connector Connection Method: Push Locking Type
Waterproof Level: IP67 Current Raiting: 20A/300V
Cable Specification: 16AWG-12AWG Warranty: Five Years
High Light:

Circular Power Connector 300V


20A Circular Power Connector


Push lock Waterproof Circular Connector

Solder Wire Waterproof Power Connector With Male And Female Plug For Led


Quick Detail Of Waterproof Circular Connectors

1) Advanced structure: Self-locking

2) Mutiple pin:2,3,4,5,6,7,8,9 to 22 pins are optional

3) Contact pin: Screw terminal and soldering terminal available

4) Assembly: wire to wire type(no cable),wire to wire by overmolding, wire to board

5) Colours:Black,blue,white and yellow color supported

6) Cable length:Different cable length could be customized




Main Features :

1. Safe use in the field, thanks to a high degree of protection,high tensile strength, abrasion and notch resistance
2. Flexible: connectors for on-site assembly,extremely high winding and unwinding strength
3. Soldering connection: proven connection technology for a large selection of different conductors
4. M8 extension cable or Flying leads(open cable ends),with good oil resistance/ chemical resistance
5. High temperature 260 degree ,solder reflowing
6.90 degree angled or straight(180 degree) overmolded M8 connector with PUR or PVC cable
7. Cable jacket with different colors,grey,black,orange,yellow,blue,overmolded color can be customized.


M19 3 pin push waterproof connector is easy to assemble when you install your lights fixtures or power fixtures, you could fast plug and unplug it , save your time and cost, it could be used for a long time , 5 years at least.


Technical specification :


Connecting mode: Push locking waterproof connector
Core number: 3 pin ,4 pin
Connector type : Bulkhead plug connector
Connector color: Black, blue, yellow
Waterproof level: IP67
Cable specification: 20AWG-12AWG
Cable diameter range: 4.5mm-11mm
Contact diameter*No. Φ1.0-Φ2.4
Rated current (A): 20A
Operating voltage (AC.V.rms): 500V
Withstand voltage (AC.V)1min: 1500V


Main characteristics:
Sealed against dust and fluid (IP67)
Vibration resistance, impact resistance, stretching resistance
Dust cover available


     How to use push locking waterproof connector ?


Just need to rotate it as the arrow show in right direction and pull it, then it could be easily unplug and assemble, for wire connection, there are two types--screw terminal and solder type, both supported as your prefer.


This connector could be easy connection, convenient install, DIY tools, and no need to pinch-off cable electrical plastic sets, just unscrew the ends of waterproof connector, connect the wire correctly: N for Neutral wire, G for Ground wire, L for live wire.
