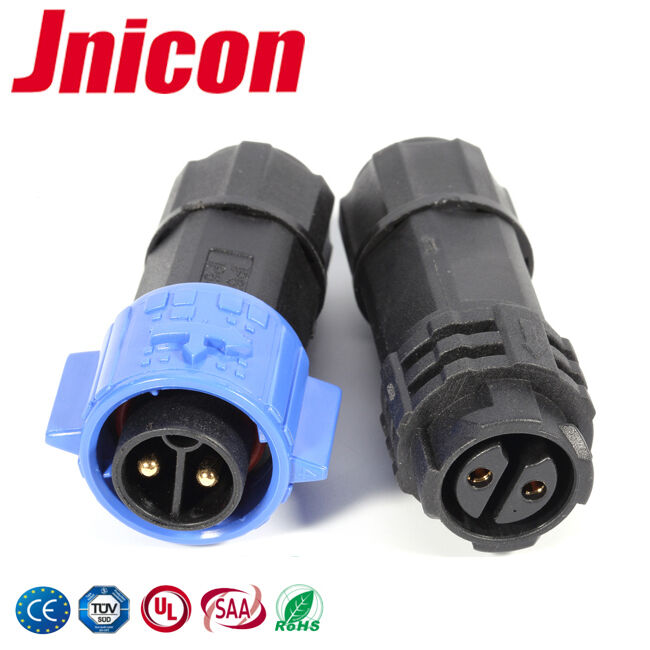

Name: M19 2 Pin Industrial Circular Connector TUV Male To Female Waterproof Connectors
Brand: Shenzhen Jnicon Technology Co., Ltd.
SKU: M19
Price: 2.20 USD
Availability: InStock

Home Products Waterproof Power Connector

M19 2 Pin Industrial Circular Connector TUV Male To Female Waterproof Connectors

Product Details:

Place of Origin:	China
Brand Name:	Jnicon
Certification:	CE,TUV,UL,RoHS
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	100 (10 Pairs of samples)
Price:	Negotiable
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3-5 working days
Payment Terms:	T/T,Paypal,L/C,Western Union
Supply Ability:	10000/days

Contact Now

Detailed Product Description

Product Name:

2Pin Waterproof Power Connector

Material:

PA66 And Brass Tin Plated

IP Level:

IP67

Rated Current:

20A/300V

Highlight:

M19 2 pin waterproof connector

industrial circular connector TUV certified

male to female waterproof power connector

Circular Connector M19 Waterproof Male Female 2Pin Plug

Operation Parameters
Voltage Rating	300VAC max
Current Rating	20A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	6.5mm ~ 10.0mm
Max.Cable Cross Section Area	0.3mm2 ~ 1.5mm2

Technical Specification

Connector Model:	M19 waterproof connector 2pin
Waterproof level:	IP67
Cable specification:	20AWG-12AWG
Cable diameter range:	4.5mm-12mm(18AWG-12AWG)
Core number:	2 pin to 22pin
Rated current (A):	20A
Operating voltage (AC.V.rms):	300V
Withstand voltage (AC.V)1min:	1500V
Contact resistance:	<5mΩ
Insulation resistance:	>500MΩ
Service	Cable length could be customized

Main characteristics:

Sealed against dust and fluid (IP67)

Vibration resistance, impact resistance, stretching resistance

Dust cover to male and female are available

Application industries:

Stage equipment	The smart grid	LED lighting
Medical equipment	Battery charging	Automation
Solar energy	Ship equipment	Agriculture
Electric power equipment	Vehicles	Ebike/motorcycle
Communications	Pool lights	Transportation

Features

1. 2pin, 3pin, 9pin, 22 pin are available.

2. The max.cable diameter: 11.0 mm.

3. Your drawings and samples are warm welcomed since our professional R&D team can help to customize the items you want.

4. protection level: IP67

5. Screw locking style,easy to assemble. It can effectively resist vibration and shock, and can prevent broken connection caused by pulling cables. It is absolutely reliable and convenient to plug in very limited space.
