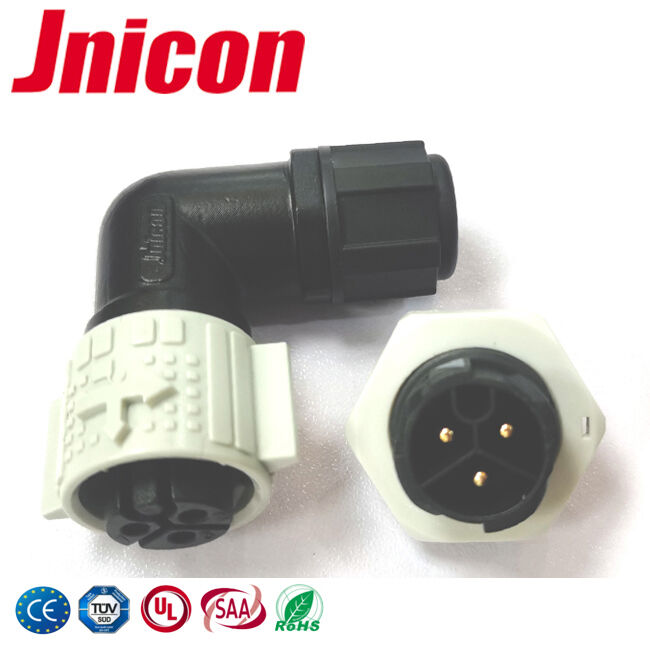

3 Pin Waterproof 90 Degrees Automotive Connector M19 20A Quick Lock Connectors

3 Pin Waterproof 90 Degrees Automotive Connector M19 20A Quick Lock Connectors

  • 3 Pin Waterproof 90 Degrees Automotive Connector M19 20A Quick Lock Connectors
3 Pin Waterproof 90 Degrees Automotive Connector M19 20A Quick Lock Connectors
Product Details:
Place of Origin: Shenzhen China
Brand Name: Jnicon
Certification: UL,TUV,CE,ROHS,CQC
Model Number: M19
Payment & Shipping Terms:
Minimum Order Quantity: 100 (10 Pairs of samples)
Price: Negotiable
Packaging Details: 1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time: 3-5 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,
Supply Ability: 10000/days
Contact Now
Detailed Product Description
Product Name: M19 90 Degrees Waterproof Connector Rated Current: 20A/300V
Material: PA66 And Brass Tin Plated Application: For Outdoor Electric Power Connection
Highlight:

3 pin waterproof automotive connector

,

M19 20A quick lock connector

,

waterproof plug socket with warranty

3 Pin Waterproof 90 Degrees Automotive Connector M19 20A Quick Lock Connectors



Features

  • 3 pin overmolded waterproof connector could be well used for outdoor led display, lighting, cable length could be customized.
  • Protection level: IP67
  • Connection method: soldering(welding)
  • Assembly: cable to cable / wire to wire
  • Certification: UL,TUV,RoHS,CQC,CE
  • Function : outdoor electric power extension
  • Color: black, yellow, blue.

M19 3 pin overmolded waterproof connector could be easy push and pull, simple to install and repair.

OEM and ODM accepted.



Technical specification



Specifications:
Current rating: 5A-20A
Core number: 3 core
Connector type : overmolded cable connector
Connector color: Black, blue, yellow
Waterproof level: IP67
Cable specification: 20AWG-12AWG
Cable diameter range: 4.5mm-11mm
Connecting mode: Push pull locking waterproof connector
Operating voltage (AC.V.rms): 500V
Withstand voltage (AC.V)1min: 1500V



Application industries:
Stage equipment The smart grid LED lighting
Medical equipment Battery charging Automation
Solar energy equipment Ship equipment Agriculture
Landscape lights Marine Fishing system



     Connector's benefits :



1. Great suitable for industrial power connection, LED fixtures, Telecommunication, Marin, grating, external wiring, CCTV, factory automation control, other places need waterproof power extension use.



2. Easy connection, convenient install, DIY tools, and no need to pinch-off cable electrical plastic sets, just unscrew the ends of waterproof connector, connect the wire correctly: N for Neutral wire, G for Ground wire, L for live wire.
