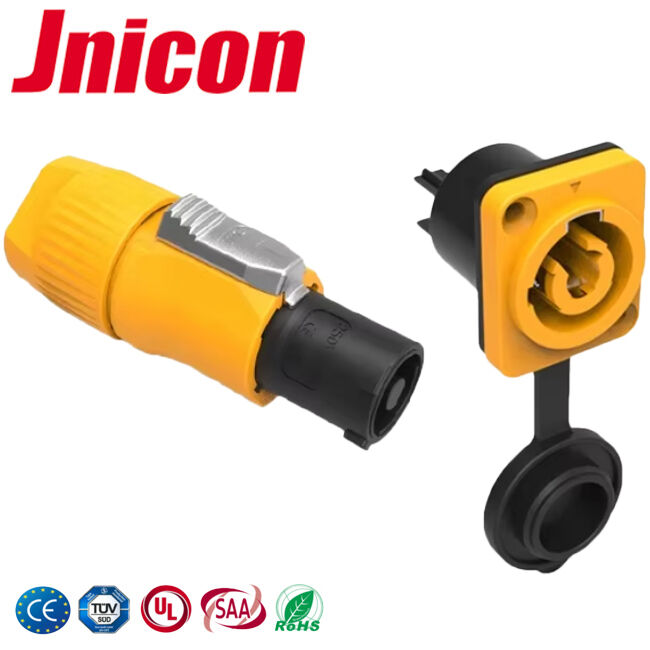

Jnicon IP65 Plastics Waterproof Plug Socket 20A 3 Pin Powercon Connector
More details of 3 Pin Powercon IP65 Waterproof Plug Socket Connector:
• gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
• Plug/unplug locking style and push locking,easy to assemble.
• High current application safety and stable wire. 14AWG wire for 3 pin powercon plug socket.
The specifiction of 3 pin powercon waterproof plug socket connector
| 3 pin powercon waterproof plug socket |
| Connecting mode |
plug Lock connection |
| Protection level |
IP44/IP65 |
| Contact diameter×number |
Φ2.0×3 |
| Current rating(A) |
20 A |
| Operating voltage |
500V |
| Temperature rating |
-25°C~80°C |
| Method of connecting cable |
Solder |
| Prevent the combustion level |
UL94-V0 |
| Material |
| Shell&insulated parts |
High performance engineering plastics |
| Contact pin |
Copper alloy(gold-plated) |
| Main characteristics |
| Sealed against dust and fluid (IP68/IP67) |
| Vibration resistance,impact resistance,stretching resistance |
• The waterproof rating is IP44/IP65, IP44 is used for indoor equipment, IP65 is used for outdoor equipment and with dust cover.
• waterproof plug socket connector of current/ voltage are 20A/500V.
• 2-4 pins are available and for varies industrial demands.
• Your drawings and samples are warm welcomed since our professional R&D team can help to customize the items you want.
Application:
The copper needles of the connector is adopted gold-plated technology,which can resist corrosion and suitable for high/low temperature, current transmission is more stable and safety.
3 pin powercon waterproof plug socket connectors could be widely used in indoor & outdoor led lighting, LED screen, audio visual equipment, industrial and testing equipment, electricl power connection, landscape lights,underwater lights,equipments etc.
It can effectively resist vibration and shock, and can prevent broken connection caused by pulling cables. It is absolutely reliable and convenient to plug in very limited space.
Product detail picture
