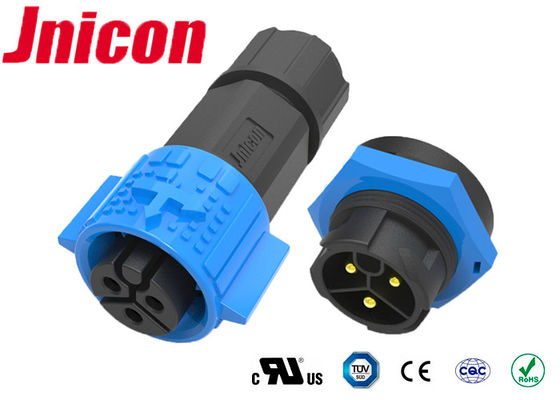

Blue Black Plastic 3 Pin 20A Waterproof Connectors Panel Mount 300V Voltage Rating

Blue Black Plastic 3 Pin 20A Waterproof Connectors Panel Mount 300V Voltage Rating

Blue Black Plastic 3 Pin 20A Waterproof Connectors Panel Mount 300V Voltage Rating

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Jnicon
Certification: TUV,UL,CE,CQC
Model Number: M19

Payment & Shipping Terms:

Minimum Order Quantity: 1 pair
Price: Negotiable
Packaging Details: 1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time: 3~5 working days
Payment Terms: T/T, Western Union, , D/P, D/A, L/C, MoneyGram
Supply Ability: 10000 sets / Day
Contact Now
Detailed Product Description
Current Rating: 20A Color: Bule Black
Contact Pin: 3 Pin Power Voltage Rating: 300V
Signal: 5 - 9 PIN Optional Application: Heavy Machinery

Jnicon Push Locking Blue Black Plastic 20A 3Pin Female Cable To Male Panel Mount Connector





Description of 3Pin Female connector



Push locking waterproof connector IP67 is the main feacture of Jnicon M19 model. Its take only a few seconds to connect the male female connector, thanks to its advanced structure . it is widely used in many application. such as:





Features:

  • Rated current: 20A/10rms.
  • 2-4PIN power supply, 5-9PIN signal is optional.
  • IP67/68 rating
  • Voltage rating: 300V
  • Cable Range: 3~11mm
  • UL, TUV, CB, CCC, CE, RoHS approved



Application of Jnicon Connectors

  • Communications Application
  • product coding machines
  • inventory product coding
  • industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic&pathology equipment
  • Communications equipment
  • Heavy machinery



Main characteristics

  • Sealed against dust and fluid (IP67)
  • Vibration resistance,impact resistance,stretching resistance
  • Cable assembly support
  • Customized cable size and length



Operation Parameters
Voltage Rating 300VAC max.
Current Rating 20A max
Min Wire Size OD 3.0mm ~ 6.5mm
Max Wire Size OD 6.5mm ~ 10mm
Max.Cable Cross Section Area 0.3mm2 ~ 2.5mm2



FAQ



1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.

2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and shipping way

3. Q: How to contact with you?
A: Please give us email,we have worked for this industry more than 10 years,So we can catch your problem,and solve it in a short time.if you have any question please feel free to let us know.



Blue Black Plastic 3 Pin 20A Waterproof Connectors Panel Mount 300V Voltage Rating
